Image Acquisition from High-End Analog Cameras

Support of monochrome (single or dual-tap)
& RGB analog cameras
Four 10-bit 40MHz A/D converters
High-resolution, typically 1300 x 1030
Independent camera control: 3 timing generators,
3 trigger strobe lines
Asynchronous reset, shutter control and
progressive-scan support
16 Mbyte frame buffer
Libraries, ActiveX controls and DLLs included

General

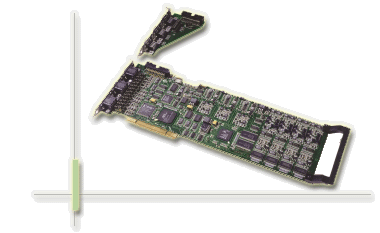

The Domino Gamma is the ideal solution for high-end multiple-camera applications . The Domino Gamma provides acquisition from typically three analog cameras (up to 6)on a single PCI board.The Domino Gamma is fitted with 3 connectors and four digitizers. Simultaneous acquisition from all channels is possible.Three timing generators, three trigger and strobe lines are available for independent camera control.

The Domino Gamma supports top-notch highresolution cameras with a pixel clock frequency up to 40MHz. It is compatible with single-tap, dual-tap and RGB cameras and generates 8-bit or 10-bit pixels per channel. Asynchronous reset, exposure control and progressive scanning are supported.

It comes with the MultiCam driver, which drastically simplifies its integration into your machine vision application

.
Quality control
Semi conductor inspection
On-the-fly image acquisition
High frame rate image acquisition

Acquisition
Four 10-bit 40MHz A/D converters
Four 10-bit input look-up-tables
Support of automatic precise input
calibration
20,10 or 5MHz programmable input filter
Programmable gain and offset control
PCI Interface
PCI rev 2.2 (5V and 3.3V) compliant interfacer
Support of DMA and bus mastering

Camera Support
Support of single-tap, dual-tap and RGB analog cameras
Support of high-resolution cameras,typically 1300 x 1030
Interlaced or progressive scanning
Asynchronous reset and shutter control
Camera pixel clock support
Typical configurations supported
       - Three independent single-tap cameras
       - Two independent dual-tap cameras
       - Two independent single-tap and one dual- tap cameras
       - One RGB camera and one monochrome single-tap camera

Timing Generators
Three independent timing generators

Frame Buffer
16 Mbyte SDRAM frame buffer

Camera Connection
Three DB15HD connectors on the main bracket including:
Differential / single ended video inputs (75 ohms)
Reset, VD, HD, exposure control and pixel clock lines
Specific connection for 12 V camera supply

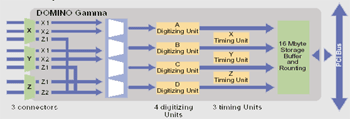

Block Diagram

I/O Connections
RS-232 (default) or RS-485 (optional) DB9.
connector on the extra bracket
Trigger-strobe (3 lines each) DB9 connector
on the extra bracket
General purpose I/O DB9 connector on the
extra bracket

DLLs and ActiveX controls for windows NT/95/98/2000
