General
The Angelo RTV-24 acquisition board is The Angelo RTV-24 acquisition board is video surveillance applications. It's the ideal device for PC based multiple-channel digitalvideo recording.

This 32-bit, 33MHz/66MHz PCI bus frame grabber can capture simultaneously four analog video streams in real time. It accepts
standard composite colors (PAL, NTSC) or monochrome video formats (CCIR, EIA).

The resolution is programmable including square-pixel (640 x 480 or 768 x 576) and broadcast resolution. Before captured images are transferred to the PC's memory, images can be scaled down using available selectable ratios.

Arbitrary cropping to regions of interest is possible. The RTV-24 generates bitmaps in all popular color formats such as RGB, YUV, planar or packed.

System integrators also benefit from a watchdog for fault-tolerant applications and easy-to-use standard connectors.

Image Acquisition
Frame Rate: 30 full-frame images acquired per second for each channel.

Color Image: Color video format is compatible with the following composite video input formats: NTSC-M, NTSC-Japan, PCL-B, PALD, PAL-G, PAL-H, PAL-I, PAM-M, PAL-N and SECAM

Monochrome Image: The monochrome video acquisition is compatible with CCIR and EIA (RS-170).

Optional Scaling: The acquire images or portions of images can be optionally scaled:
      Acquisition of a programmable area of interest
      Scaling of the image (down to 1:16)
      Adjustment of hue (for NTSC signals),
         contrast (0 to 200%), brightness and
         saturation (0 to 200% for U and V signals)
      Automatic chrominance gain control

Channel Extension
The Angelo RTV-24 is designed to receive up
to 3 video input modules, each with four BNC
connectors with the ability to connect up to a
maximum configuration of 16 cameras.

Channel Extended Interface: Three 10pin header connectors on-board.

I/O Lines
The Angelo RTV-24 is fitted with TTL compatible I/O lines, supporting 4 inputs, 4 outputs and 4 soft trigger lines with protection against overloads and electrostatic discharges.

Every line maybe configured as an input or output or can be used to trigger an acquisition or report an alarm condition.

Watchdog
A hardware watchdog is available on the Angelo RTV-24. The watchdog is able to monitor the PC's application operation and will automatically reset the PC after a programmable inactivity time-out. This ensures a reliable operation of remote systems.

&ans Serif, Tahoma, sans-serif">&g src="images/bulet.gif" width="10" height="11"> PC Based Surveillance System
      Digital Video Recorder (DVR)
      Factory Monitoring System
      Machine Vision Inspection System
      Scientific Research Instrumentation
      Medical Research Instrumentation

WDM driver
The driver's supports VC++/VB/C++
Builder/Delphi programming under Windows
NT/98/2000/XP platforms with DLL.

ViewCreator
ViewCreator assists developers to evaluate
initial tests and functions.

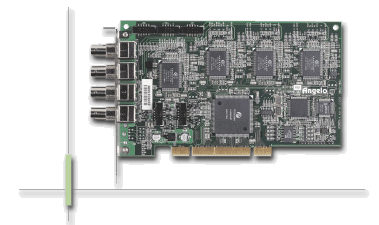

      Angelo RTV-24
         4-Channel real-time video capture board
         for standard cameras
