Advanced Monochrome Industrial Image Grabber Card

32-bit, PCI bus image grabber card
Industrial frame grabber compatible with monochrome analog cameras (single or dual-tap)
Two 8-bit 32MHz A/D converters
High-resolution, typically 1300 x 1030
Independent camera control: 2 timing generators, 2 trigger & strobe lines
Asynchronous reset, shutter control and progressive-scan support
8 MB frame buffer
Libraries, ActiveX controls and DLLs included

General

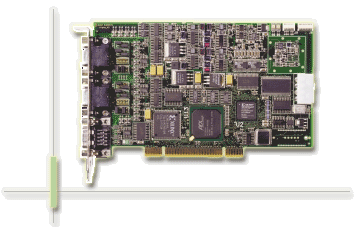

The Domino Alpha2 is a flexible industrial frame grabber card compatible with monochrome analog cameras. It is the ideal solution for on-the-fly applications.

The Domino Alpha2 provides acquisition from two single-tap or one dual-tap analog cameras on a single PCI board. The Domino Alpha is fitted with 2 camera connectors and two digitizers. Simultaneous acquisition from both channels is possible. Two timing generators, two trigger and strobe lines are available for independent camera control.

The Domino Alpha supports standard as well as top-notch high-resolution cameras with a pixel clock frequency up to 32MHz.
Asynchronous reset, exposure control and progressive scanning are supported
.
It comes with the MultiCam driver, whichdrastically simplifies its integration into your machine vision application

.
Quality control
Semi conductor inspection
On-the-fly image acquisition
High frame rate image acquisition

Acquisition
Two 8-bit 32MHz A/D converters
Two 8-bit input look-up-tables
20, 10 or 5MHz programmable input filter
Programmable gain and offset control

PCI Interface
PCI rev 2.2 compliant interface
Support of DMA and bus mastering

Camera Support
Support of single-tap and dual-tap analog cameras
Support of high-resolution cameras, typically up to 1300 x 1030 pixels
Interlaced or progressive scanning
Asynchronous reset and shutter control
Camera pixel clock support
Typical configurations supported
- Two independent single-tap cameras
- One dual-tap camera

Timing Generators
Two independent timing generators
The timing generator X supports analog and digital synchronization
The timing generator Y only supports digital synchronization
A digital synchronization requires H, V and pixel clock signals from the camera while an analog synchronization only uses the video signal

Frame Buffer
8 Mbyte SDRAM frame buffer

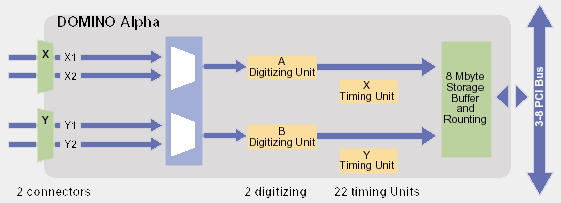

Block Diagram

Camera Connection
Two DB15HD connectors on the main bracket including:
Differential / single ended video inputs (75 ohms)
Reset, VD, HD, exposure control and pixel clock lines
Specific connection for 12 V camera supply

I/O Connections
Trigger-strobe (3 lines each) DB9 connector.

DLLs and ActiveX controls for windows NT/95/98/2000
