Long Lifespan and Ultra Safe Rechargeable Cell

We specializes in developing and manufacturing advanced Lithium-ion Phosphate batteries which feature both high power and energy densities with a long lifespan and ultra-safe performance. Unique water-based manufacturing technology can help customers design products that outperform other . Company also takes advanced technologies include updated battery materials, effective manufacturing method, high precision quality control system and abundant safety design etc. High quality products would help customer build the excellent energy storage systems as customer required.

For all Life batteries we deployed an advanced IMS (Information Management System) to monitor manufacturing processes, for every step in manufacturing, parameters of cells would be automatically logged and judged, if any fault cells would be mark and pick out. This system also logged the electrical properties of every cell in quality testing procedures. For battery package step, system would calculate those parameters and offer the best candidates cells for pack assembly, by this way our battery packs got a superior consistency than other competitors.

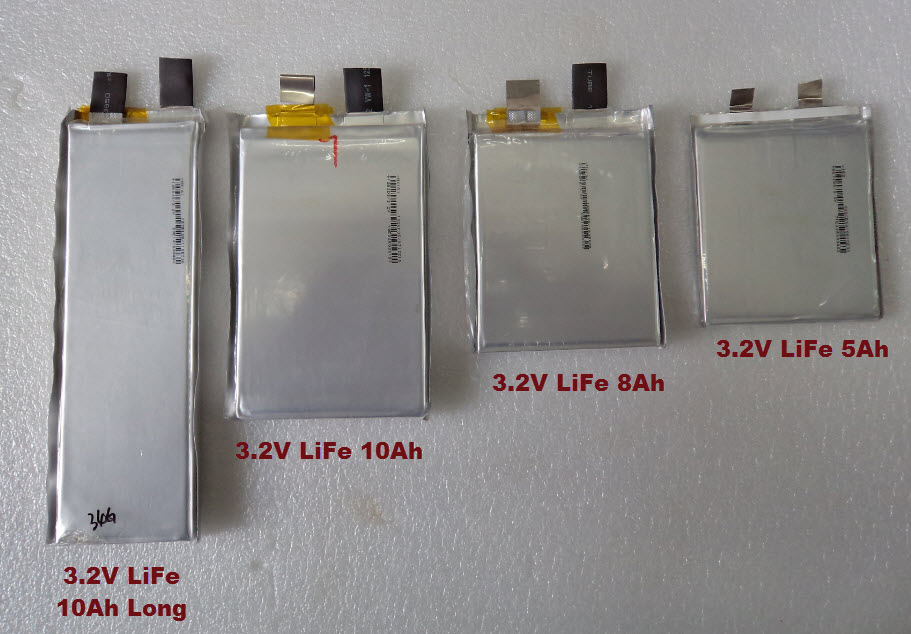

Model: SV-HK-5A
Type:LiFePo4
Capacity:5Ah
Dimension(H*W*L):8.5*75*82mm.
Weight 110g
Energy Density:123Wh/kg,249 Wh/I
Discharge Current Continuous/Peak:3C/6C

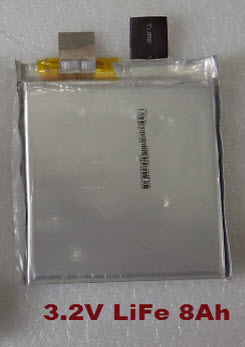

Model: SV-HK-8A
Type:LiFePo4
Capacity:8Ah
Dimension(H*W*L):12*80*93mm.
Weight 190 g.
Energy Density:116Wh/kg,260 Wh/I
Discharge Current Continuous/Peak:3C/6C

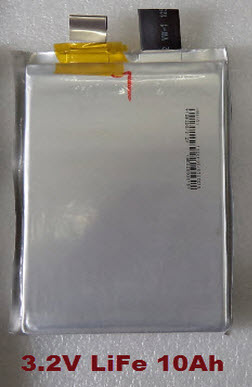

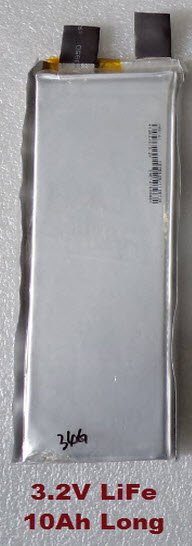

Model: SV-HK-10A
Type:LiFePo4
Capacity:10Ah
Dimension(H*W*L):11.5*60*182mm.
Weight 240g
Energy Density:125Wh/kg,234 Wh/I
Discharge Current Continuous/Peak:3C/6C













Model: BP-HK-10E
Type:LiFePo4
Capacity:10Ah
Dimension(H*W*L):12*82*126mm.
Weight 240g
Energy Density:125Wh/kg,248 Wh/I
Discharge Current Continuous/Peak:3C/6C

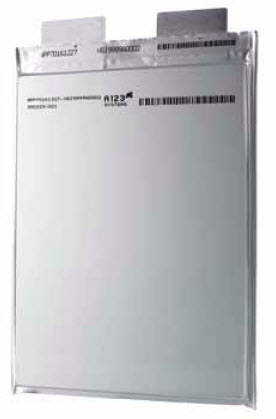

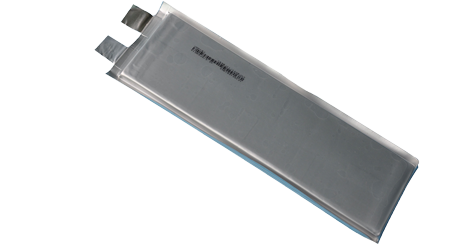

New LifePO4 20Ah PouchCell
Cell Dimensions : 7.25 x 160 x 227 mm.
Cell Weight : 496 g.
Cell Capacity (minimum) :19.6Ah.
Discharge Power (nominal) :1200W.
Specic Power (nominal) :2400 W/kg.

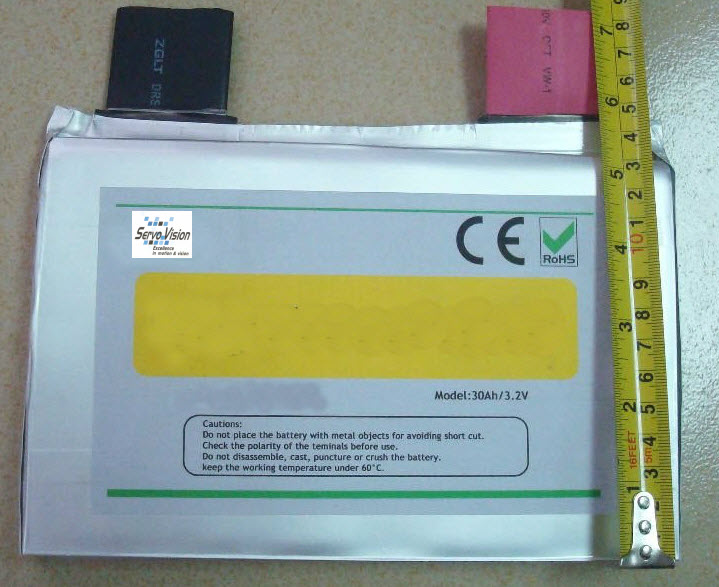

Model: SVB-LFP16215160

Type:LiFePo4
Capacity:30Ah
Dimension(T*W*L):16*215*160 mm.
Weight: 910g.

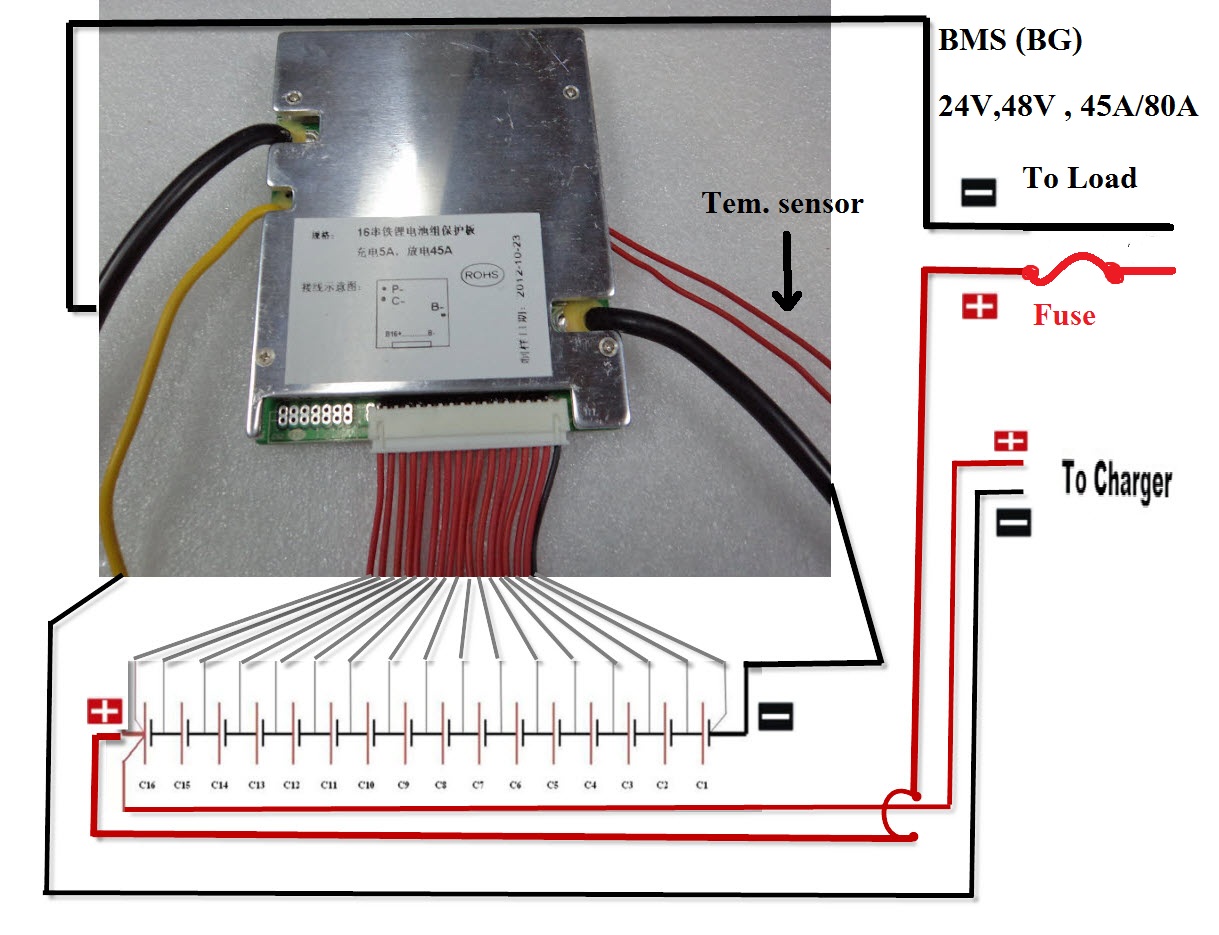

BMS Wiring Diagram (.jpg)
