Best Conrollers for your Personal Electric Vehicles

BLDC Motor Controllers (5KW - 30KW) for electric cars, motorcycles, golf carts, etc.

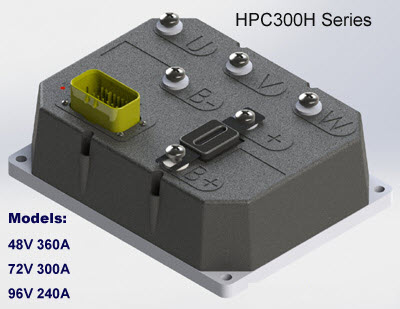

Model: HPC300 Series -- Brushless Motor Controller

Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V)
Rated Current (Max):360A/300A/240A
Weight:2.2Kgs     Dimensions: 192x146x77mm
Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring

See More >>>

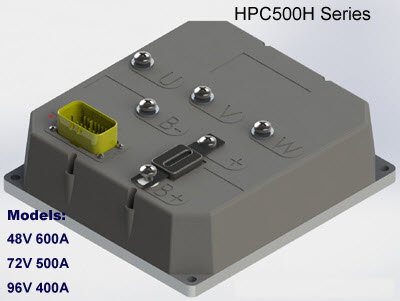

Model: HPC500 Series -- Brushless Motor Controller

Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V)
Rated Current (Max):600A/500A/400A
Weight:2.9Kgs     Dimensions: 192x208x77mm
Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring

See More >>>

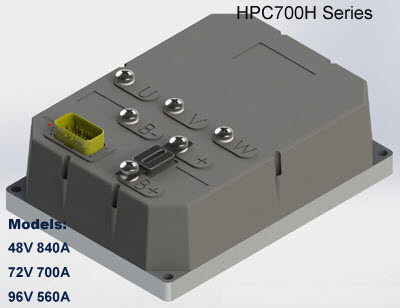

Model: HPC700 Series -- Brushless Motor Controller

Voltage Ranges:48V(~60V)/72V(~90V)/96V(~140V)
Rated Current (Max):840A/700A/560A
Weight:5.7Kgs     Dimensions: 200x276x85mm
Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring

See More >>>

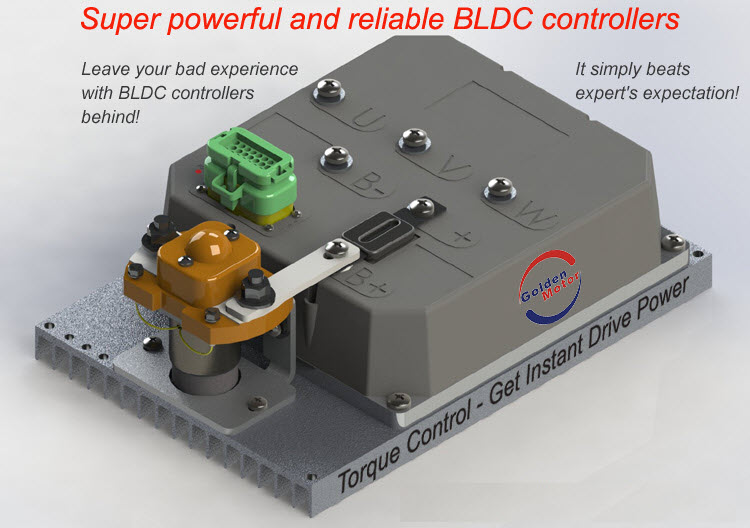

Most robust and reliable brushless motor controllers for electric cars, motorcycles, and motorboats.

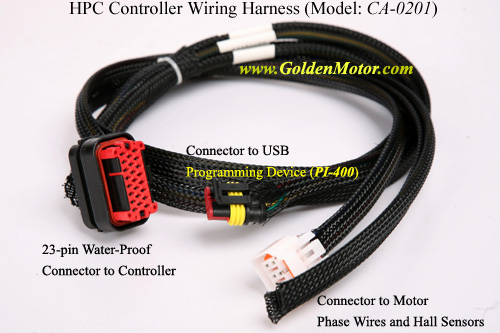

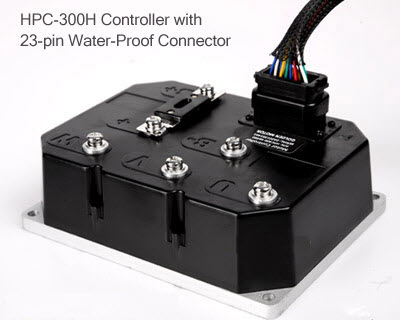

Model: CA-201 -- HPC Controller Wiring Harness

23-pin Water-Resistent Connector

Dynamic Montoring Connector

Set up Software Download for HPC Brushless Controller >>> Download

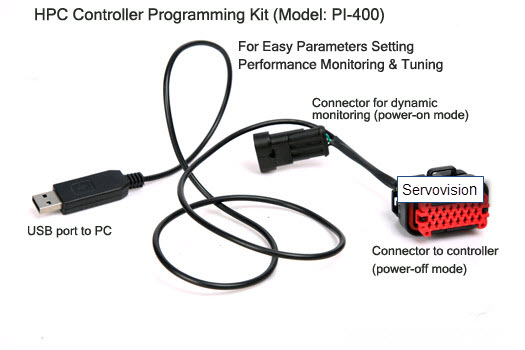

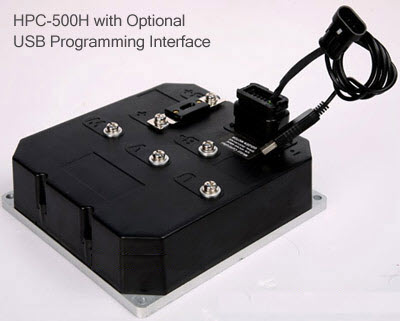

Model: PI-400 -- HPC Controller Programming Kit

Easy Installation for PC/laptop with Windows OS

Easy USB Port Connection

Setup Parameters without Power-on Controller

Monitor Motor Performance Dynamically

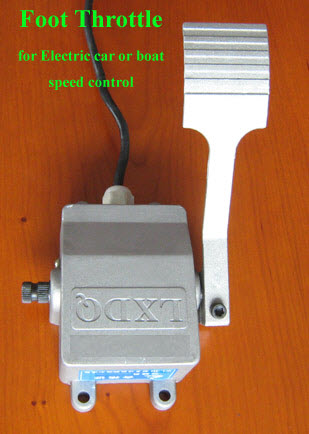

Model: FSC-010 -- Foot Throttle
Output Voltage: 0-5V
Material: casted aluminium
Weight:0.9Kgs
Features: Water resistant

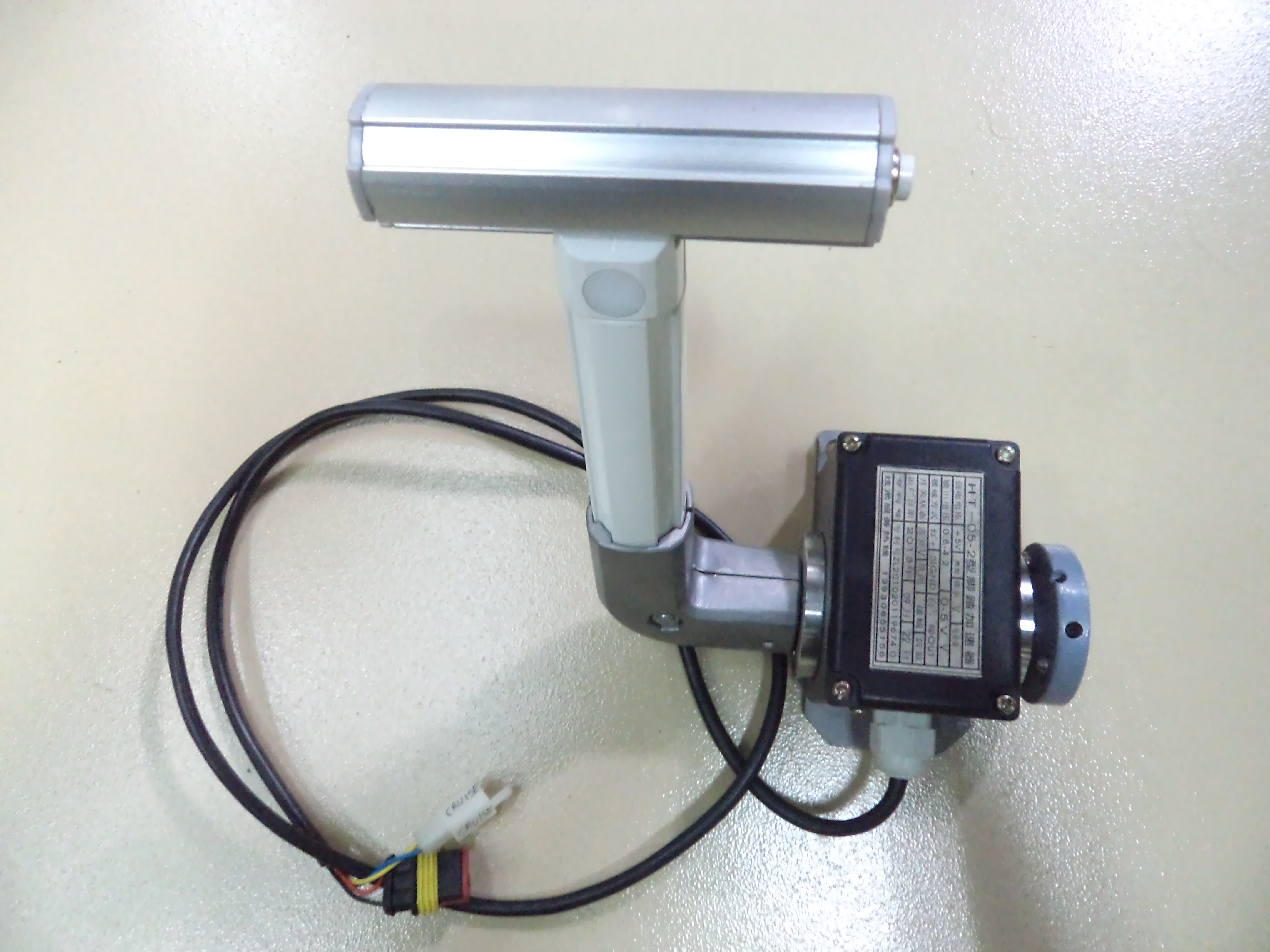

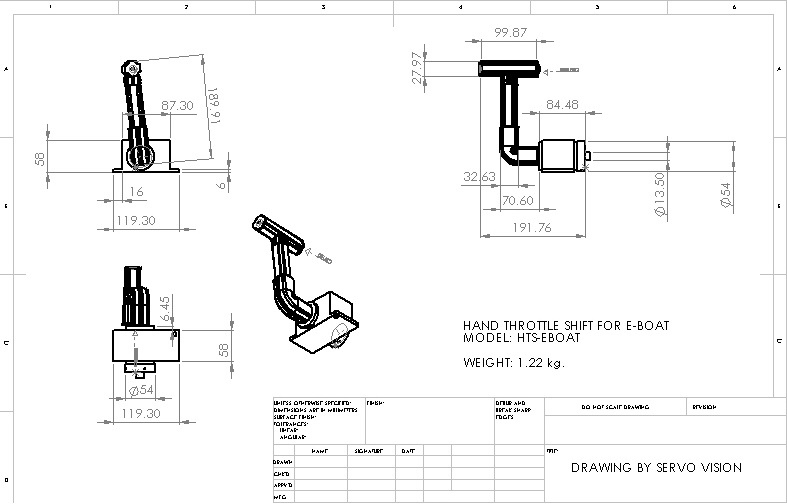

Model: HTS-EBOAT

Hand Throttle Shift

for E-Boat

Weight: 1.22 kg.

Views

Dimensions

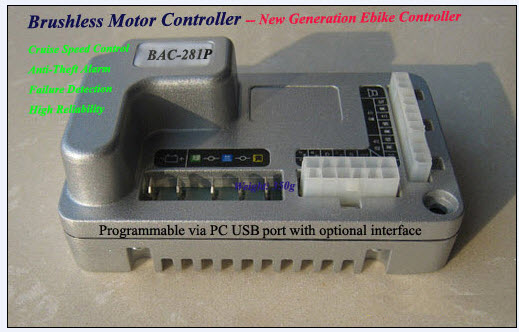

Brushless Dual-Mode Cruise Controller -- for Electric Bicycles, Scooters!
Magic! ... It can drive your ebike even with failed motor hall sensors, throttle, breaker, or all of them failed together!
It acts as sensorless controller when your motor hall effect sensors fail!

Special Features:

  • Cruise Speed Control -- Sensor/Sensorless Dual-Mode Control

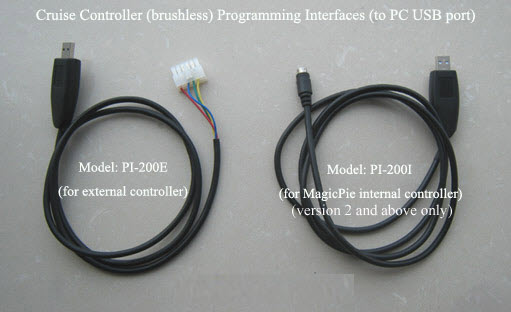

  • Programmable via PC to setup motor control parameters
  • Motor hall sensor failure redundency (Automatically switch to sensorless control mode)
  • Anti-theft alarm and wheel-locking by detection of vibration
  • True regenerative braking (only effective when you squeeze the hand brake)
  • Other failures redundency (Work with failed throttle and power breaker)
  • Work with multiple voltages: 24V, 36V and 48V with the same controller
  • Report failure components by beeps
  • Motor phase self detection and calibration
  • Support Forward and Reverse Control
  • Excessive Current Protection
  • Low Voltage Protection
  • High Reliability
