Motor Controller

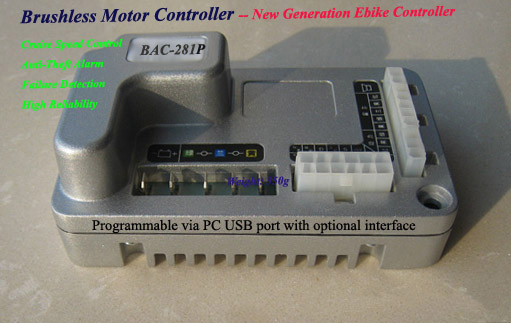

Brushless Motor Cruise Controller with Regenerative (มีระบบชาร์ทไฟกลับเข้าแบตเตอรี่เมื่อเบรค,ชลอ,ลงเนิน)
Programmable via PC USB port!
แบบไม่มีแปลงถ่าน และมีแปลงถ่าน)

โปรแกรมผ่าน Port USB

Click To Download Software Setup
(Cruise Control

Model: BAC-028136V/30A, BAC-0282 48V/30A, BAC-0283 24V/30A

cruise contol

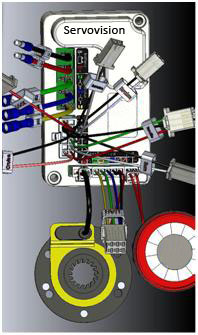

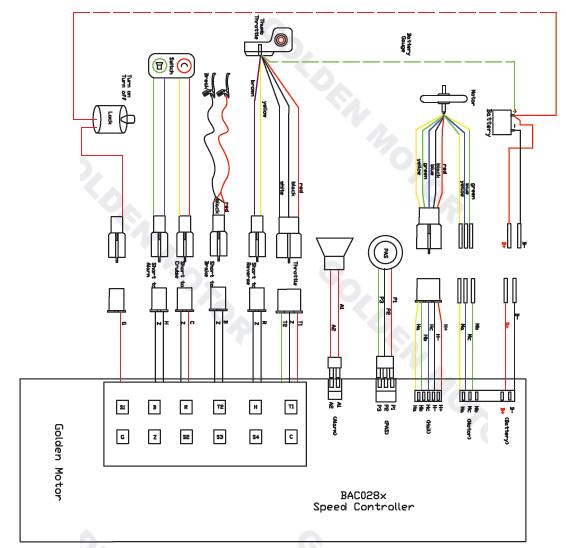

cruise controller connectioncruise controller

  • Special Features:
  • Cruise Speed Control :พร้อมระบบ Regenerative.....(มีระบบชาร์ทไฟกลับเข้า แบตเตอรี่ เมื่อเบรค,ชลอ,ลงเนิน)
  • Programmable via PC to setup motor control parameters
  • Motor hall sensor failure redundency (Automatically switch to sensorless control)
  • Anti-theft alarm and wheel-locking by detection of vibration
  • True regenerative braking (only effective when you squeeze the hand brake)
  • Other failures redundency (Work with failed throttle and power breaker)
  • Work with multiple voltages: 24V, 36V and 48V with the same controller
  • Report failure components by beeps
  • Motor phase self detection and calibration
  • Support Forward and Reverse Control
  • Excessive Current Protection
  • Low Voltage Protection
  • High Reliability

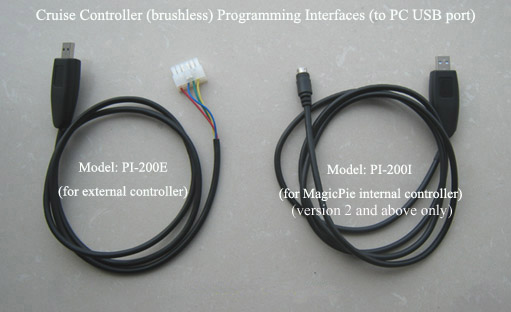

  • cruise controller programming interface

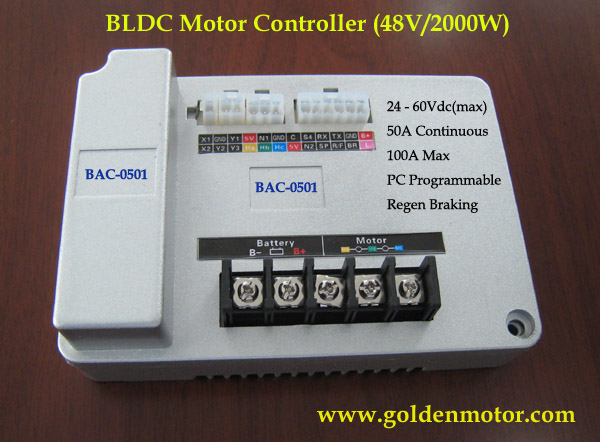

    BLDC Motor Controller (48V2000W)
    Cruise/Regen Controller, Programmable!
    Multi-Voltage of 24V/36V/48V/60V
    Continuous current: 50A
    Max current: 100A
