1. Light weight and Compact
2. Driven by Electric Power no further cost needed for facilities
3. Low Noise
4. High Rigidity
5.Easy to Install
6. Flexible Stroke (traveling distance
7.Low Cost
8.Avoid High/Low frequency wave Interference
CHARACTERISTICS
|
1. Light weight and Compact 2. Driven by Electric Power no further cost needed for facilities 3. Low Noise 4. High Rigidity 5.Easy to Install 6. Flexible Stroke (traveling distance 7.Low Cost 8.Avoid High/Low frequency wave Interference |
TECHNICAL DATA
|
2000N TYPE |
FORCE max(N) |
VOLTAGE (V/DC) |
CURRENT max(A) |
VELOCITY maxmm/sec) |
STROKE (mm) |
LENGTH (mm) |
|
HAI-1 |
2000 |
24 |
5 |
9 |
130 |
405 |
|
HAI-2 |
2000 |
24 |
5 |
9 |
180 |
455 |
|
HAI-3 |
2000 |
24 |
5 |
9 |
230 |
505 |
|
HAI-4 |
2000 |
24 |
5 |
9 |
340 |
610 |
|
HAI-5 |
2000 |
24 |
5 |
9 |
440 |
710 |
|
7000N TYPE |
FORCE max(N) |
VOLTAGE (V/DC) |
CURRENT max(A) |
VELOCITY max(mm/sec) |
STROKE (mm) |
LENGTH (mm) |
|
HAI-71 |
7000 |
24 |
8 |
4.5 |
130 |
405 |
|
HAI-72 |
7000 |
24 |
8 |
4.5 |
180 |
455 |
|
HAI-73 |
7000 |
24 |
8 |
4.5 |
230 |
505 |
|
HAI-74 |
7000 |
24 |
8 |
4.5 |
340 |
710 |
|
12000N TYPE |
FORCE max(N) |
VOLTAGE (V/DC) |
CURRENT max(A) |
VELOCITY max(mm/sec) |
STROKE (mm) |
LENGTH (mm) |
|
HAI-121 |
12000 |
24 |
11 |
4 |
150 |
455 |
|
HAI-122 |
12000 |
24 |
11 |
4 |
200 |
505 |
|
HAI-123 |
12000 |
24 |
11 |
4 |
250 |
550 |

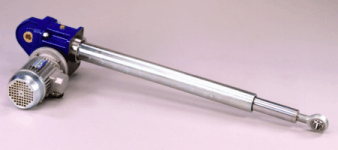

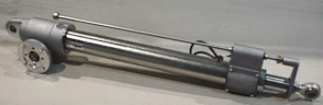

ACME SCREW LINEAR ACTUATORS
