Slave ID consumption: 2 consecutive from odd
32-CH digital input

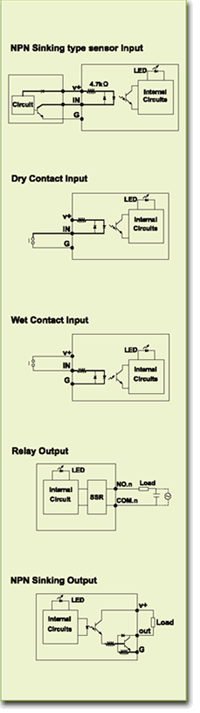

-N: for NPN sinking type sensor or dry contact
Photo couple isolation voltage: 2500Vrms
Input impedance: 4.7K W
Input current: ±10mA(Max),
±12.5mA(Peak)
Input voltage: ±40V
(Max)
LED Indicator: Power, Link and Input status
Power Supply: 10V to +30VDC
Operating Temperature: 0 to 60°C
Storage Temperature: -20 to 80°C
Power Consumption: 1.8W |
|
|
Slave ID consumption: 2 consecutive from odd
32-CH digital output
-N: NPN sinking type output
Switch capacity: Single channel 500mA; all
channels 60mA at 24VDC
Photo couple isolation voltage: 2500Vrms
Response time: ON OFF: 180 ms,
OFF ON : 1.2ms
LED indicator: Power, Link and Output status
Power supply: 10V to +30 VDC
Operating temperature: 0 to 60°C
Storage temperature: -20 to 80°C
Power consumption: 1.8W |
|
Slave ID consumption: 1
16-CH digital input and 16-CH digital output
-NN: for NPN sinking type sensor input
or dry
contact and NPN sinking type output
Photo couple isolation voltage: 2500Vrms
Input impedance: 4.7KW
Input current: ±10mA(Max)
, ±12.5mA(Peak)
Input voltage: ±40V
(Max)
Output switching capacity:
Single channel 500mA; all channels
60mA at
24VDC
Output response time: ON OFF: 180ms,
OFF ON:
1.2ms
LED indicator: Power, Link and I/O status
Power supply: 10V to +30 VDC
Operating temperature: 0 to 60°C
Storage temperature: -20 to 80°C
Power consumption: 1.8W
|
|
Slave ID consumption: 1
8-CH relay output and 16-CH digital input
-N: for NPN sinking type sensor or
contact
Photo couple isolation voltage: 2500Vrms
Input impedance: 4.7KW
Input current: ±10mA(Max) ,
±12.5mA(Peak)
Input voltage: ±40V (Max)
Relay rating: 30VDC / 2A, 250VAC / 2A
Relay switching frequency:
Max. 20 times/minute at rating load
Relay response time: ON OFF:
Max. 3ms, OFF ON: Max. 6ms
Nominal voltage for relay: 24VDC
Input impedance: 4.7KW
Input current: ±10mA(Max),
±12.5mA(Peak)
Input voltage: ±40V (Max)
LED indicator: Power, Link and I/O status
Power supply: 10V to +28VDC
Operating temperature: 0 to 60°C
Storage temperature: -20 to 80°C
Power consumption: 1.8W
|
|
|
