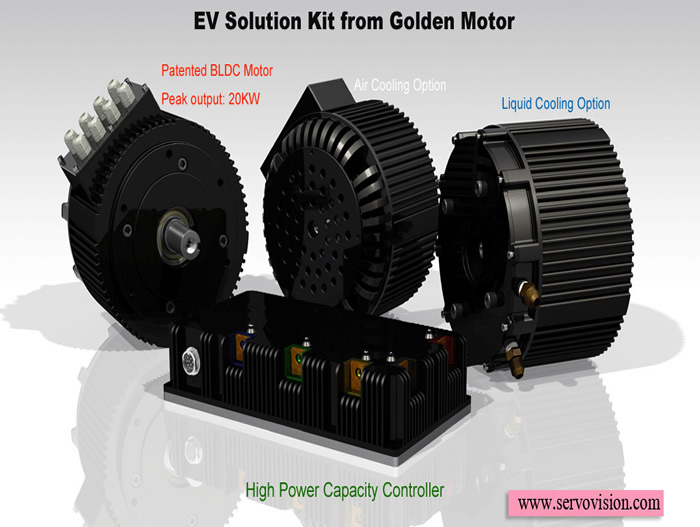

Clean, Efficient, Light Weight, Powerful BLDC Motor Drive Kits

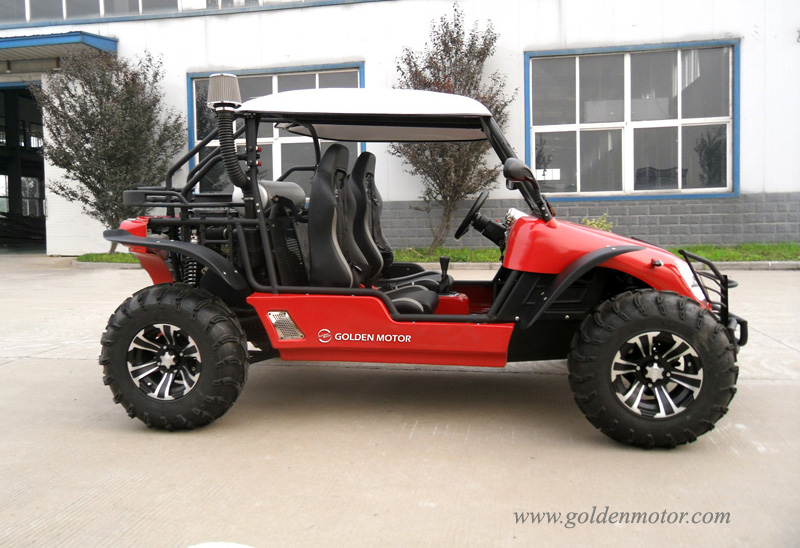

for Electric Car, ATV, Go-Kart, Golf Buggy
-
3KW BLDC Motor |

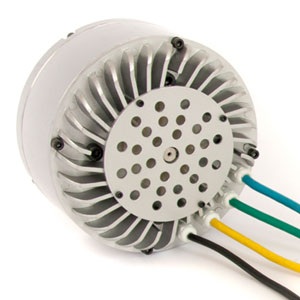

3KW Fan Cooling |

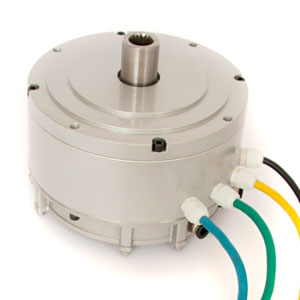

3KW Liquid Cooling |
|
|
Detailed parameters |

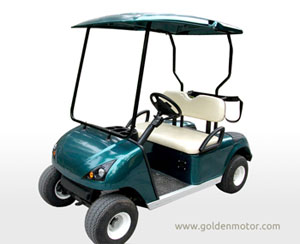

Application Sample |
Model: HPM3000B -- High Power BLDC Motor
Voltage:48V/72V/96V
1. Voltages: 48/72/96Vdc
2. Rated power: 2-3KW
3. Peak power: 6KW
4. Speed: 3000-5000rpm
5. Rated torque: 10 Nm
6. Peak torque: 25 Nm
7. Efficiency: >90%
8. Dimensions: 18cm dia. 12.5cm height
9. Weight: 8kgs
10. Cooling: air or liquid cooling
|
 |
5KW BLDC Motor |

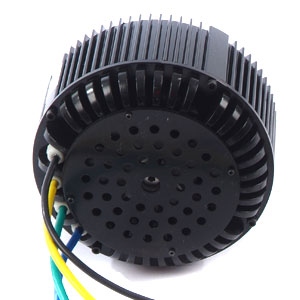

5KW Fan Cooling |

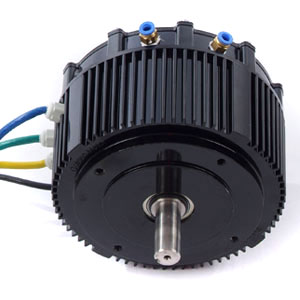

5KW Liquid Cooling |
 |
 |
Detailed parameters |

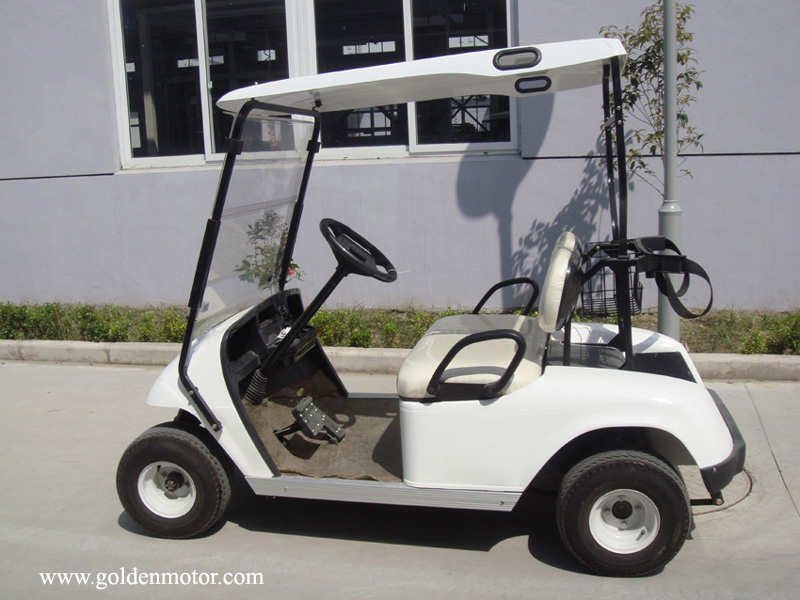

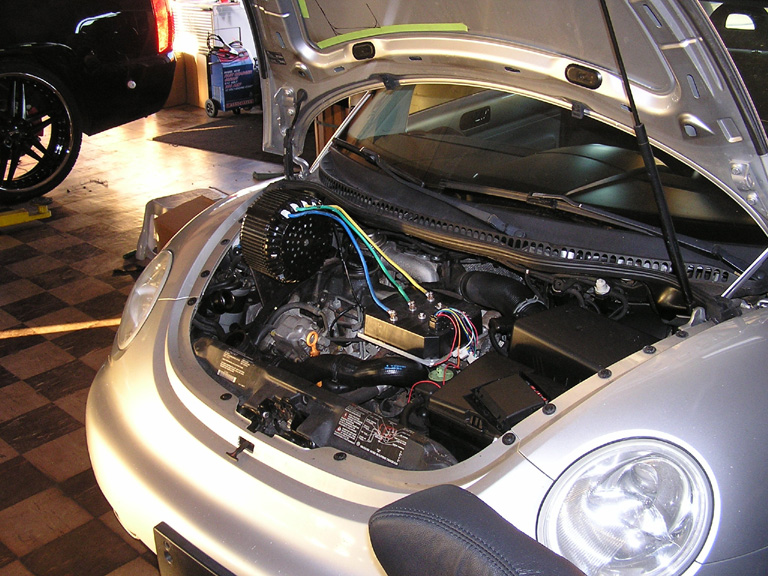

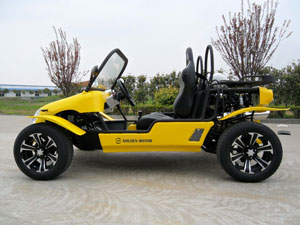

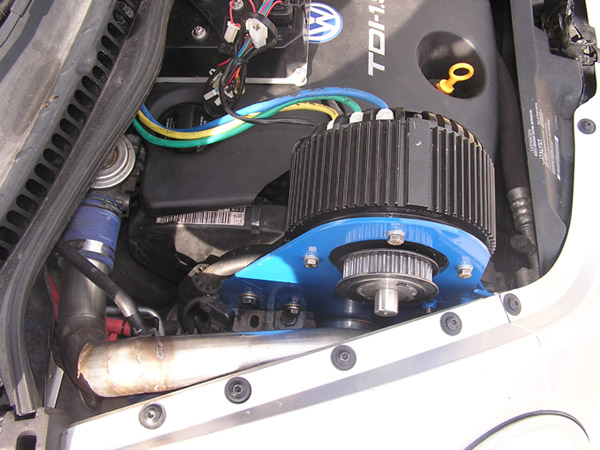

Application Sample |

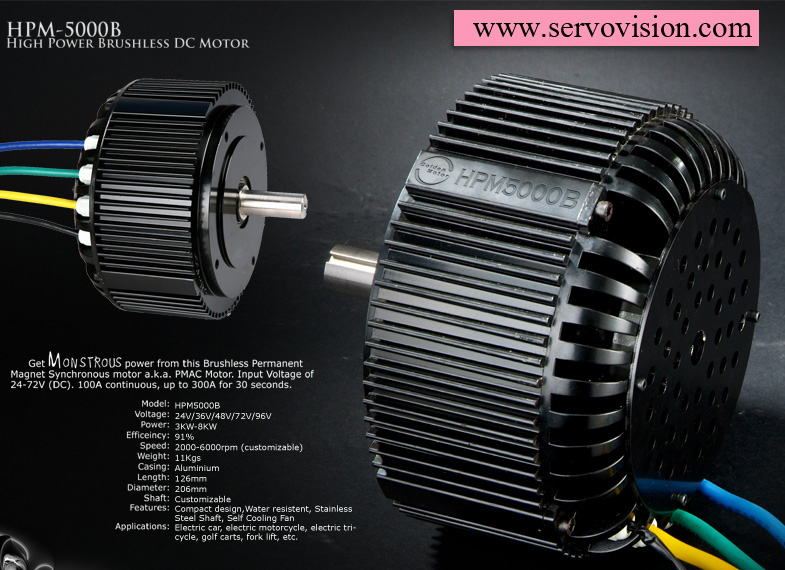

Model: HPM5000B -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:3KW-7.5KW
Efficeincy: 91%
Phase Resistance (Milliohm): 6.2/48V; 12.0/72V; 36.0/120V
Phase Induction(100KHZ): 68uH/48V; 154uH/72V; 504uH/120v Speed: 2000-6000rpm (customizable)
Weight:11Kgs Casing: Aluminium
Length (height): 126mm Diameter: 206mm
Keyway size: 5mm(W) x 43mm(L) x 19mm(D:22.3mm)
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
.
|
 |
10KW BLDC Motor |

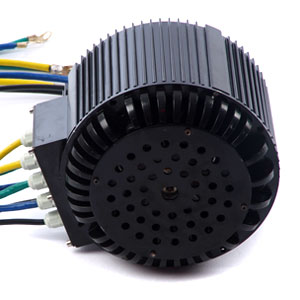

10KW Fan Cooling |

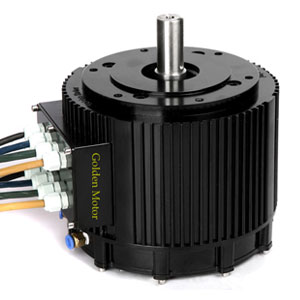

10KW Liquid Cooling |
|
|
Detailed parameters |

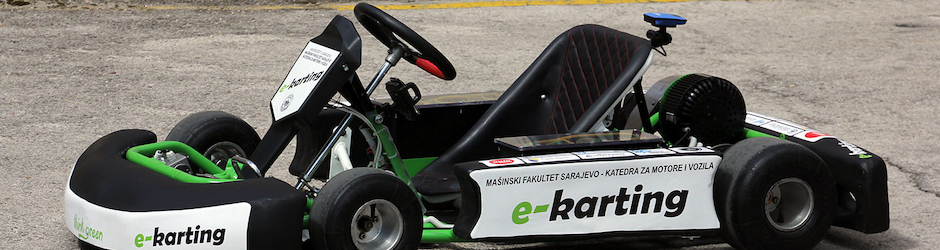

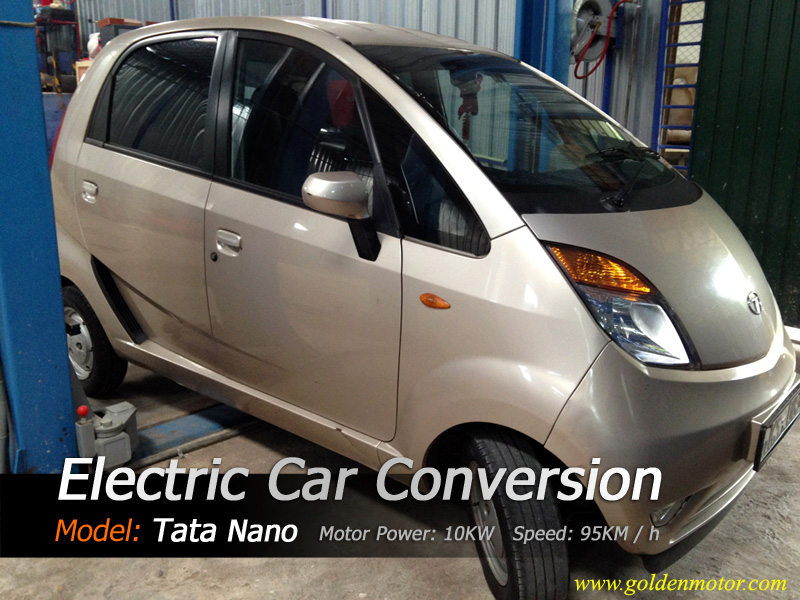

Application Sample |

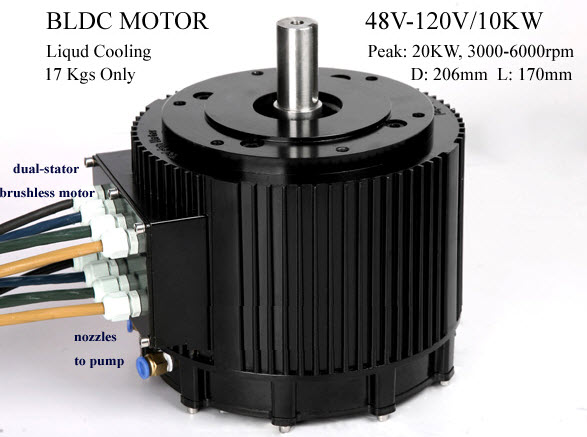

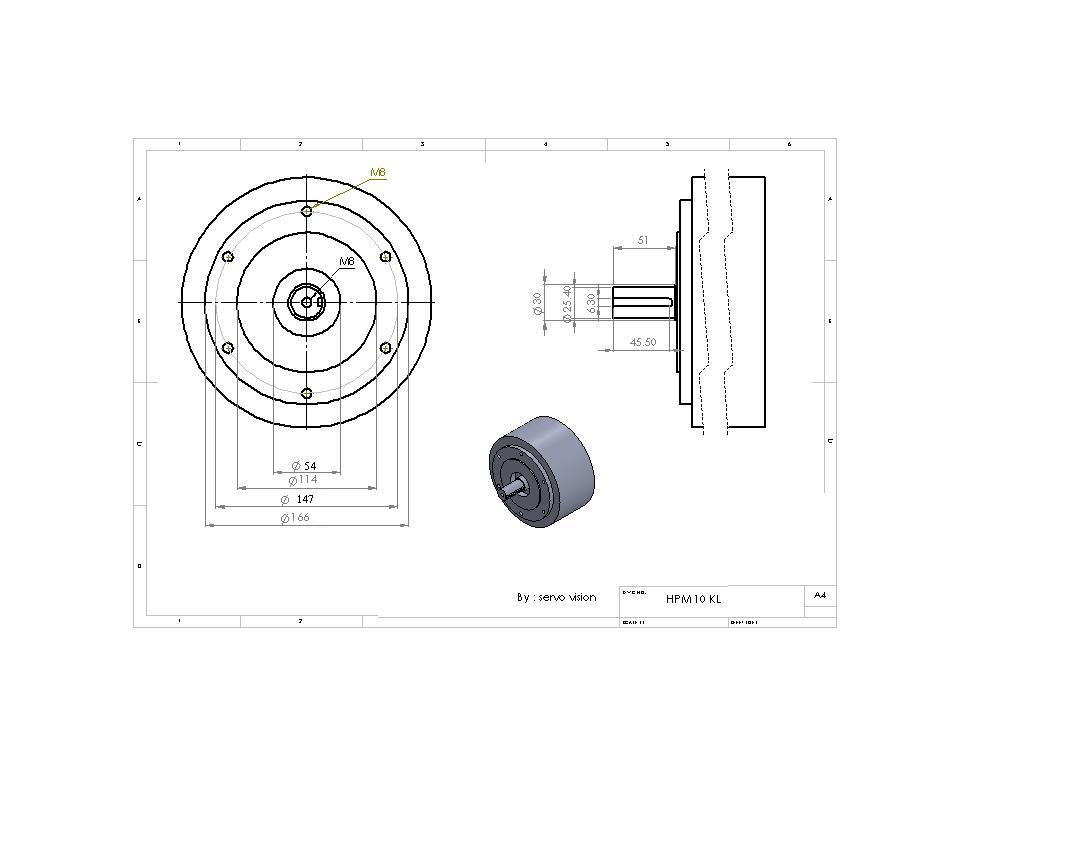

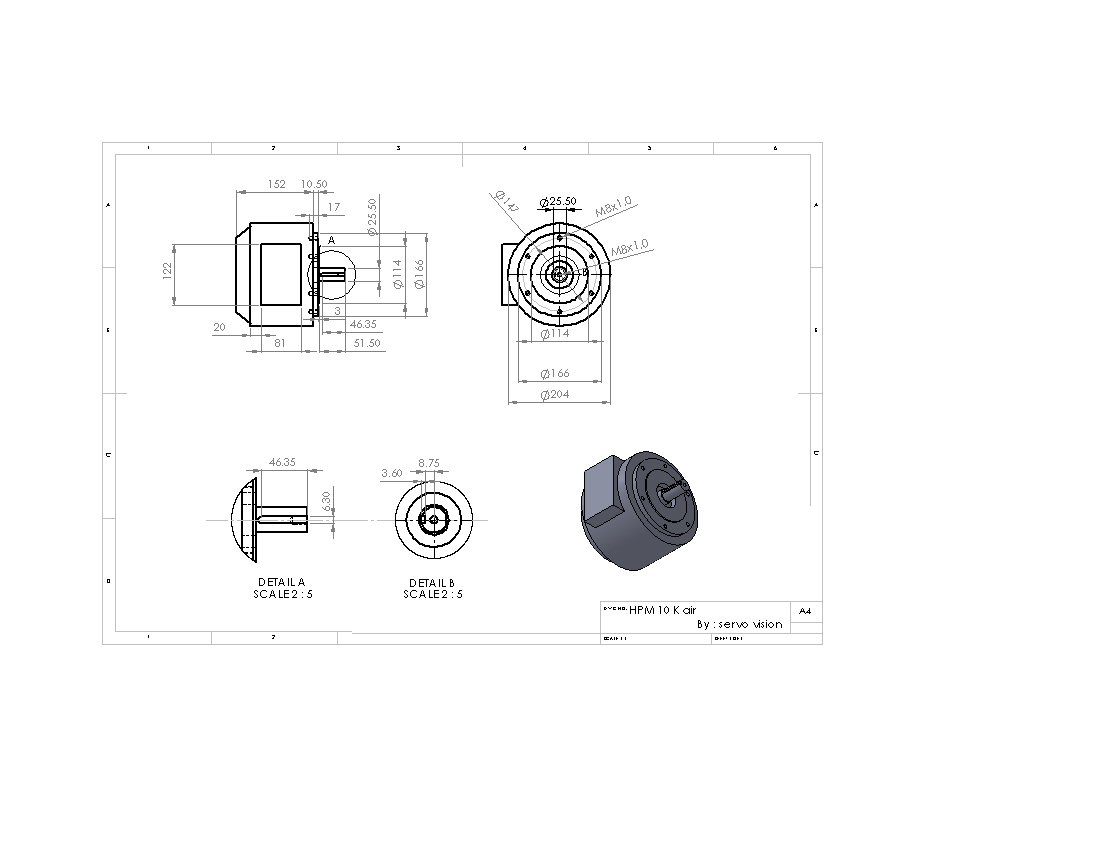

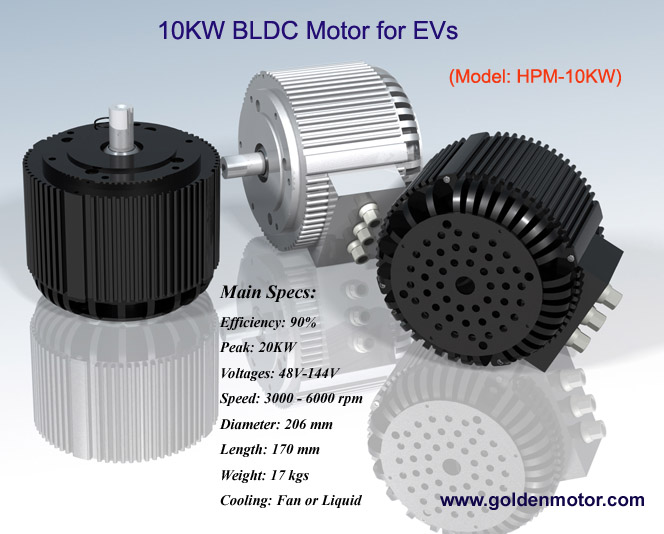

Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: Aluminium
Length (height): 170mm Diameter: 206mm
Keyway size: 6.4mm(W) x 45mm(L) x 21.7mm(D:25.4mm)
|
 |
20KW BLDC Motor |

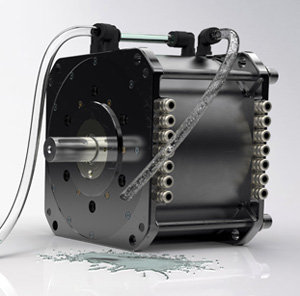

20KW Liquid Cooling |
|
|
|
|
|
Detailed parameters |

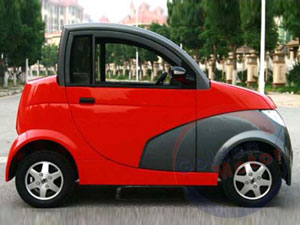

Application Sample |
Model: HPM-20KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
1. Voltages: 72V-120Vdc
2. Rated power: 20-25KW
3. Peak power: 50KW
4. Speed: 3200-5000rpm
5. Rated torque: 80 Nm
6. Peak torque: 160 Nm
7. Efficiency: >90%
8. Dimensions: 30x30x25cm
9. Weight: 39kgs
10: Cooling: liquid cooling
|
 |
|
