High Performance BMS,PCM for LiFePO4 Battery Packs

	4S 12V/30A PCM D134V1		PCM/BMS for Lifepo4 Battery pack 12V. Charging voltage: 14.4V. Maximal continuous charging current:30A. Maximal continuous discharging current:30A. Size (LWT) :L120mmW30mmT5mm
	8S 24V/25A PCM D132		PCM/BMS for Lifepo4 Battery pack 24V. Charging voltage: 28.8V. Maximal continuous charging current:10A Maximal continuous discharging current:25A Size (LWT) :L60mmW50mmT23mm
	12S 36V/25A PCM D132		PCM/BMS for Lifepo4 Battery pack 36V. Charging voltage: 43.2V Maximal continuous charging current:10A. Maximal continuous discharging current:25A. Size (LWT) :L60mmW50mmT23mm
	16S 48V/25A PCM D132		PCM/BMS for Lifepo4 Battery pack 48V. Charging voltage: 57.6V Maximal continuous charging current:10A. Maximal continuous discharging current:25A. Size (LWT) :L60mmW50mmT23mm
	8S 24V D131 Different port		PCM/BMS for Lifepo4 Battery pack 24V. Charging voltage:28.8V Maximal continuous charging current:20A/50A Maximal continuous discharging current:80A/50A Size (LWT) :L120mmW80mmT15mm
	12S 36V D131 Different port		PCM/BMS for Lifepo4 Battery pack 36V. Charging voltage:43.2V Maximal continuous charging current:20A/50A Maximal continuous discharging current:80A/50A Size (LWT) :L120mmW80mmT15mm
	16S 48V D131 Different port		PCM/BMS for Lifepo4 Battery pack 48V. Charging voltage: 57.6V Maximal continuous charging current:50A/20A Maximal continuous discharging current:50A/80A Size (LWT) :L120mmW80mmT15mm

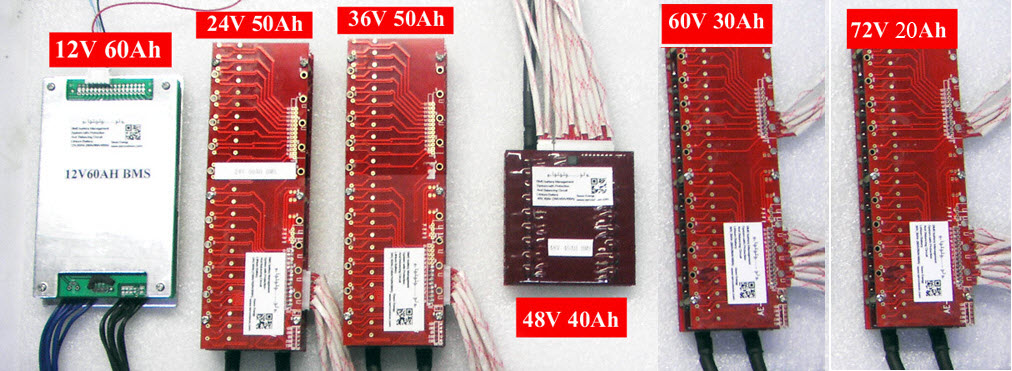

Advance BMS ( Battery Management System) For Pristmatic LiFePo4 Cell Example for some model & specification

>>How to wire/ Connec the advance BMS(60V,72V) to life cell pack

Pristmatic BMS Price(Charge & discharge terminal in same point)
No.	For battery pack	Series	Continuous discharge current	Max discharge current	Over-current protection	Balancing current
1	10.8V20AH	3	15A	40A	80A	0.1-1A
2	12V10AH	4	10A	20A	40A	0.1-1A
3	12V10AH	4	20A	30A	80A	0.1-1A
4	12V20AH	4	20A	30A	80A	0.1-1A
5	12V20AH	4	40A	60A	200A	0.1-1A
6	12V30AH	4	60A	90A	400A	0.15-1.5A
7	12V40AH	4	80A	120A	600A	0.2-2.0A
8	12V40AH	4	100A	150A	800A	0.2-2.0A
9	12V50AH	4	120A	180A	950A	0.2-2.0A
10	12V60AH	4	60A	90A	480A	0.2-2.0A
11	12V60AH	4	120A	180A	980A	0.2-2.0A
12	12V60AH	4	120A	200A	980A	0.2-2.0A

13	24v10AH	8	15A	40A	80A	0.1-1A
14	24v10AH	8	20A	30A	80A	0.1-1A
15	24v20AH	8	20A-25A	60A	120A	0.1-1A
16	24v30AH	8	30A	40A	160A	0.1-1A
17	24v20AH	8	40A	60A	200A	0.1-1A
18	24v50AH	8	40A	80A	200A	0.1-1A
19	24v30AH	8	50A	100A	280A	0.15-1.5A
20	24v20AH	8	60A	100A	400A	0.15-1.5A
21	24v40AH	8	80A	120A	560A	0.2-2.0A
22	24V40AH	8	110A	200A	800A	0.2-2.0A
23	24v50AH	8	40A	80A	250A	0.2-2.0A
24	24V50AH	8	100A	150A	720A	0.2-2.0A

25	27v10AH	9	10A	20A	40A	0.1-1A
26	36v10AH	12	20A	30A	80A	0.1-1A
27	36v30AH	12	20A-25A	60A	120A	0.1-1A
28	36v30AH	12	40A	60A	200A	0.1-1A
29	36V50AH	12	100A	150A	720A	0.2-2.0A
30	48V10AH	16	10A	20A	40A	0.1-1A
31	48V10AH	16	20A	30A	80A	0.1-1A
32	48V10AH	16	25A	50A	120A	0.1-1A
33	48V20AH	16	50A	70A	280A	0.1-1A
34	48V20AH	16	60A	90A	400A	0.1-1A
35	48V30AH	16	50A	160A	280A	0.2-2.0A
36	48V30AH	16	60A	90A	400A	0.2-2.0A
37	48V40AH	16	30A	45A	160A	0.1-1A
38	48V40AH	16	40A	60A	200A	0.1-1A
39	48V50AH	16	80A	120A	560A	0.2-2.0A
40	48V50AH	16	100A	150A	720A	0.2-2.0A
41	48V50AH	16	110A	180A	800A	0.2-2.0A
42	48V60AH	16	120A	300A	900A	0.2-2.0A

43	54V20AH	18	30A	60A	160A	0.2-2.0A
44	57V50AH	19	100A	200A	720A	0.2-2.0A
45	60V30AH	20	60A	90A	400A	0.2-2.0A
46	60V50AH	20	100A	150A	720A	0.2-2.0A
47	69V50AH	23	50A	80A	280A	0.2-2.0A
48	69V50AH	23	100A	200A	720A	0.2-2.0A
49	72V20AH	24	45A	100A	300A	0.2-2.0A
50	72V30AH	24	60A	90A	400A	0.2-2.0A
51	72V35AH	24	80A	140A	560A	0.2-2.0A
52	72V50AH	24	100A	150A	720A	0.2-2.0A
53	72V50AH	24	120A	180A	900A	0.2-2.0A
BMS Price(Charge & discharge terminal in separate point)
No.	For battery pack	Series	Continuous discharge current	Max discharge current	Over-current protection	Balancing current
55	24V30AH	8	40A-20A	60A	200A	0.1-1A
56	36V15AH	12	15A-8A	30A	80A	0.1-1A
57	36V25AH	12	25A-8A	40A	120A	0.1-1A
58	48V35AH	16	35A-8A	60A	160A	0.1-1A
59	48V20AH	16	40A-20A	60A	200A	0.1-1A
60	24V20AH	8	60A-50A	160A	400A	0.2-2A
61	24V20AH	8	90A-30A	160A	650A	0.2-2A
62	48V30AH	16	40A-15A	150A	200A	0.1-1A
63	48V30AH	16	40A-15A	60A	250A	0.2-2A
64	48V60AH	16	60A-15A	90A	400A	0.2-2A
65	48V40AH	16	80A-20A	120A	550A	0.2-2A
66	48V50AH	16	100A-20A	150A	720A	0.2-2A
67	60V50AH	20	50A-15A	80A	280A	0.2-2A

No.	For battery pack	Series	Continuous discharge current	Max discharge current	Over-current protection	Balancing current
1	12V100AH	4	150A	200A	800A	0.25-2.5A
2	12V100AH	4	200A	300A	800A	0.25-2.5A
3	12V200AH	4	200A	300A	800A	0.5-5A
4	12V200AH	4	200A	400A	800A	0.25-2.5A
5	12V200AH	4	200A	400A	800A	0.5-5A
6	12V200AH	4	400A	600A	1600A	0.5-5A
7	24V100AH	8	150A	200A	800A	0.25-2.5A
8	24V100AH	8	200A	300A	800A	0.25-2.5A
9	24V200AH	8	400A	600A	1600A	0.5-5A
10	36V100AH	12	200A	300A	800A	0.25-2.5A
11	36V200AH	12	400A	600A	1600A	0.5-5A
12	48V100AH	16	150A	250A	800A	0.25-2.5A
13	48V100AH	16	200A	300A	800A	0.25-2.5A
14	48V200AH	16	400A	600A	1600A	0.5-5A
15	60V100AH	20	200A	300A	800A	0.25-2.5A
16	72V70AH	24	150A	280A	800A	0.25-2.5A
17	72V100AH	24	200A	300A	800A	0.25-2.5A
18	72V100AH	24	200A	400A	800A	0.25-2.5A
19	72V200AH	24	400A	600A	1600A	0.5-5A
20	72V200AH	24	400A	800A	1600A	0.5-5A
21	84V50AH	28	70A	100A	200A	0.25-2.5A
22	84V100AH	28	70A	100A	200A	0.25-2.5A
23	84V100AH	28	120A	200A	800A	0.25-2.5A
24	84V100AH	28	200A	400A	800A	0.25-2.5A
25	84V200AH	28	300A	450A	800A	0.5-5A
26	96V30AH	32	40A	60A	200A	0.25-2.5A
27	96V30AH	32	60A	90A	200A	0.25-2.5A
28	96V50AH	32	60A	90A	200A	0.25-2.5A
29	96V50AH	32	70A	100A	200A	0.25-2.5A
30	96V100AH	32	70A	100A	200A	0.25-2.5A
31	96V50AH	32	100A	150A	800A	0.25-2.5A
32	96V100AH	32	120A	200A	800A	0.25-2.5A
33	96V100AH	32	200A	400A	800A	0.25-2.5A
34	96V200AH	32	350A	450A	800A	0.5-5A
35	120V30AH	40	60A	90A	200A	0.25-2.5A
36	120V100AH	40	200A	300A	800A	0.25-2.5A
37	120V200AH	40	350A	450A	800A	0.5-5A
38	144V100AH	48	200A	300A	800A	0.25-2.5A
39	144V100AH	48	200A	400A	800A	0.25-2.5A
40	144V200AH	48	300A	450A	800A	0.5-5A
41	150V60AH	50	80A	120A	200A	0.25-2.5A
42	156V30AH	52	60A	90A	200A	0.25-2.5A
43	156V60AH	52	120A	180A	800A	0.25-2.5A
44	162V40AH	54	100A	150A	800A	0.25-2.5A
45	210V50AH	70	100A	150A	800A	0.25-2.5A
46	216V100AH	72	100A	200A	800A	0.5-5A
47	225V150AH	75	300A	400A	800A	0.5-5A
48	231V40AH	77	120A	200A	800A	0.25-2.5A
49	252V100AH	84	150A	300A	800A	0.5-5A
50	282V50AH	94	150A	200A	800A	0.25-2.5A
51	288V100AH	96	100A	250A	800A	0.5-5A
52	288V100AH	96	200A	300A	800A	0.5-5A
53	288V200AH	96	300A	450A	800A	0.5-5A
54	300V100AH	100	200A	300A	800A	0.5-5A
55	300V200AH	100	300A	450A	800A	0.5-5A
56	336V100AH	112	200A	300A	800A	0.5-5A
57	336V150AH	112	200A	300A	800A	0.5-5A
58	336V200AH	112	300A	450A	800A	0.5-5A
59	375V20AH	125	60A	100A	300A	0.25-2.5A
60	390V40AH	130	80A	120A	300A	0.25-2.5A
