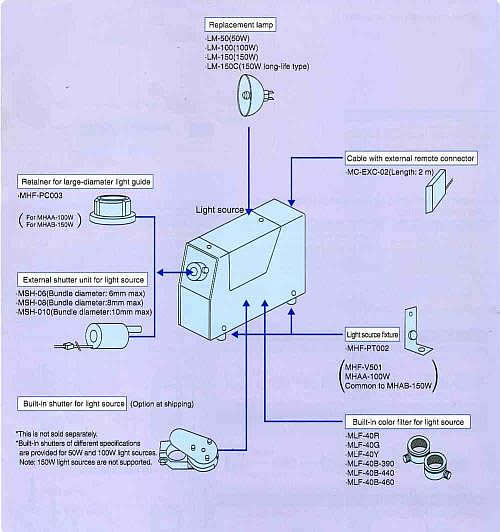

: : : : : : : : : : Light Source Option : : : : : : : : : :



Light Source internal shutter
  • Located in side a light source, this shutter requires no aditional space.
  • Capable of opening and closing about 50 million times over course of its long life.
  • It is not conected to light control function allowing it to operate independently.
  • Open/close can be selected when voltage is inclued.

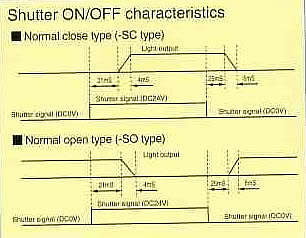

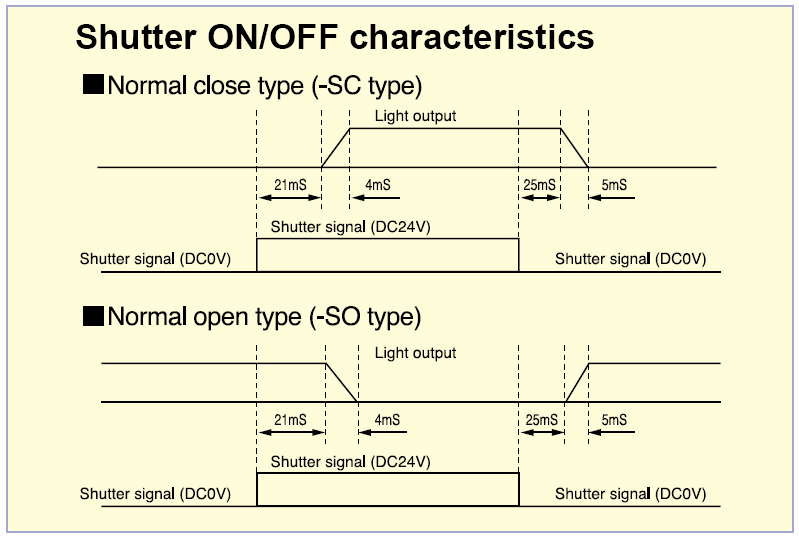

Shutter ON/OFF characteristics _

Fluorescent material emission inspection ; wafer, substrate,metal part damage inspection

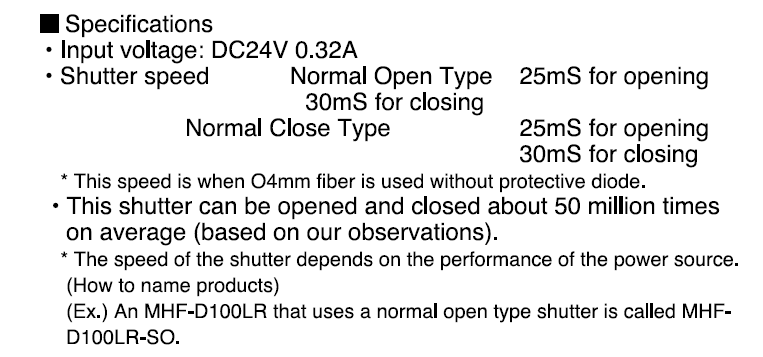

____Specification

* Please ask to mount this shutter when ordering a light source. It is not sold separately and canot be mounted to a previously bought light source.
* Not compatible with MHF-G150LR.

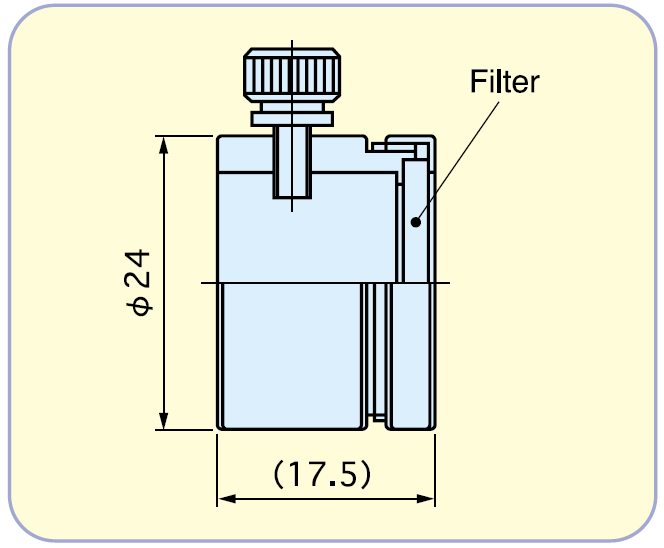

Light Source internal color fillter
Model
Color
Peak wave input nm
MLF-40R
Red
600
MLF-40G
Green
533
MLF-40Y
Yellow
480
MLF-40B-390
Violet
390
MLF-40G-440
Blue
440
MLF-40B-460
Light Blue
460
* Mount the fillter by covering the light guide holding ferule inside the light source.
* Canot be use with the light source internal Shutter.
Click for drawing
Lage Diameter ferrule : MHF-PC003
Use this ferrule when using a large diameter light guide.(Compatible with MHF-D100SLR and MHF-G150LR)
* When using with MHF-G150LR, detach the lamp space inside the light source.

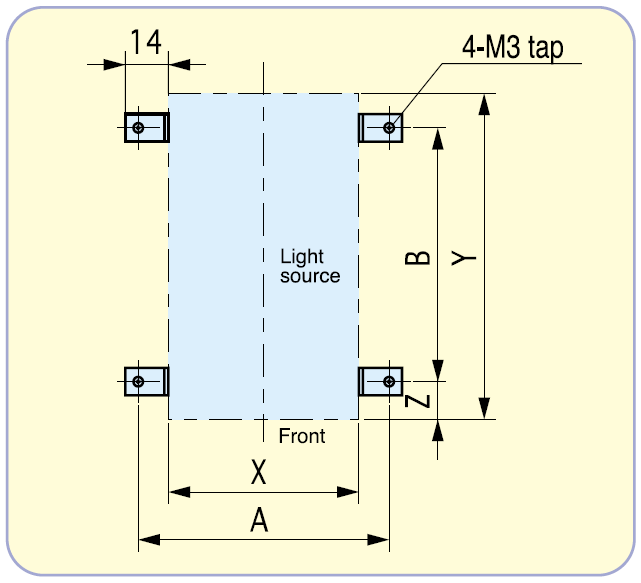

Light Source mounting fitting (a set of four pieces) : MHF-PT001
Model A B X Y Z
MHF-H05LR
86
208
70
220
7
MHF-C50LR
86
185
70
239
28
MHF-M1001/1002
90
190
74
234
22
* Mounting jigs for thin light source (MHF-C/H/M)
Click for drawing

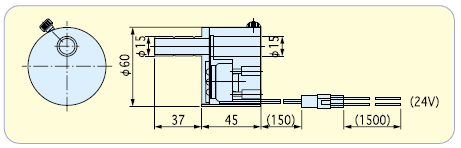

External Shutter unit
Model Compatible Model
MSH-06(24V) Binding thead 0f diameter 6 or less
MSH-08(24V) Binding thead 0f diameter 8 or less
MSH-010(24V) Binding thead 0f diameter 10 or less
* Standard products' shutter close when 24V induced.

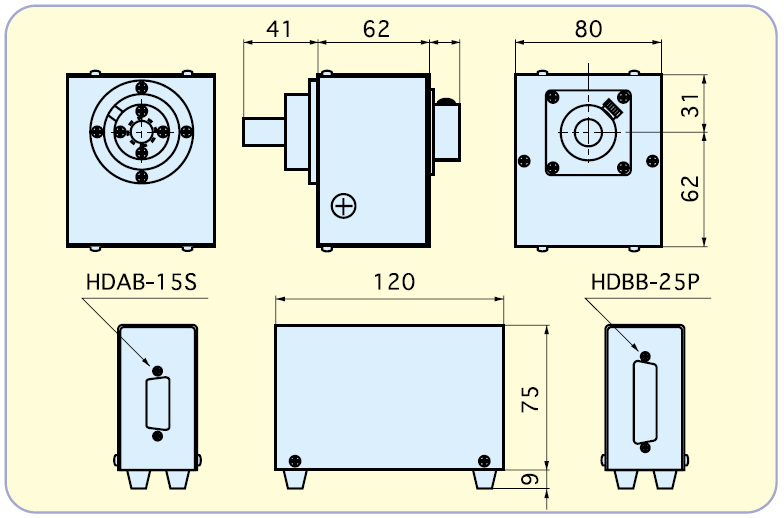

External color filter change + Driver unit
MSH-4CH (Click for Drawing)

Mount the unit on the ferrule of light source and you can control for color filters at maximum.

  • Recomended fillter (15mm-diameter 2.5mm-thick half type)
  • Use KA-03 When using a 150W light source

Optin Attachment Drawing for Halogen Light Source


Built-in shutter for light Source :Production by order (Option at shipping)
  • No installation space necessary for the built-in type
  • Long life (opening and closing 50 million times on average)
  • Independent opening and closing possible, irrespective of the dimmer function

  • Specifications
    • input voltage: DC24V 0.32A
    • Shutter response speed Normally open Close: 25 ms, Open: 30 ms

      * The response speeds are when a fiber cable of 4 mm dia. is used with no protective diode.



    • Average shutter life: Opening and closing about 50 million times (Moritex average)

    * The shutter opening and closing speeds slightly differ depending on the power supply performance.

    • Order code designation metho(Ex.) When a shutter of the normal open type is attached to MHAA-100W-100V,MHAA-100W-SO-100V

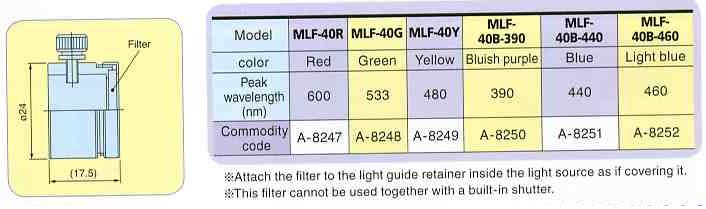

Light source internal color filter


                                                                                             *Attach the filter to the light guide retainer inside the light source as if covering it.
                                                                                             *This filter cannot be used together with a built-in shutter.



MHF-PT002: Light Source Fixture
Model
MHF-PT002
Commodity code
A-8200



External Shutter Unit for Light Source

Model
MSH-06
MSH-08
MSH-010
Appilcable Model
Bundle diameter: 6mm max
Bundle diameter: 8mm max
Bundle diameter:10mm max
Commodity code
A-8236
A-8237
A-8238
*The standard shutter is closed when 24V is applied.
*
Comtact MOritex about the specifications for the normally closed type shutter



Retainer for large-diameter light guide : MHF-PC003
Model MHF-PC003
Commodity code
A-8211
     Use this retainer for a large-diameter light guide.(Applicable model: MHAA-100W/MHAB-150W)
*Consult Moritex for use.


Halogen Lamp Series : Dedicated high, reliability Halogen lanps

  LM-50 LM-100 LM-150 LM-150C
Power consumption 50W 100W 150W 150W
Lamp vltage DC11.7V DC11.7V DC14.7V DC14.7V
Lamp current 4.2A 8.4A 10A 10A
Average lamp life *1 2,000 hrs nominal 1,000 hrs nominal 50 hrs nominal 500 hrs nominal
aVerage luminosity *2 About 19,000Lx About 30,000LX About 80,000LX About 45,000Lx
Color temperature 3000 °K 3100 °K 3,400 °K 3,200 °K
Commodity code A-8203 A-8213 A-8220 A-8221
*1 Many lamps are lit and the time measurements until their filaments blow are normally distributed. The average time from the peak time until the survival ratio of 50 % is called the average life.
*2 The average illuminance is at 50 mm from the fiber end at the maximum volume when MOritex standard light guide(MAG4-200S) is attached.

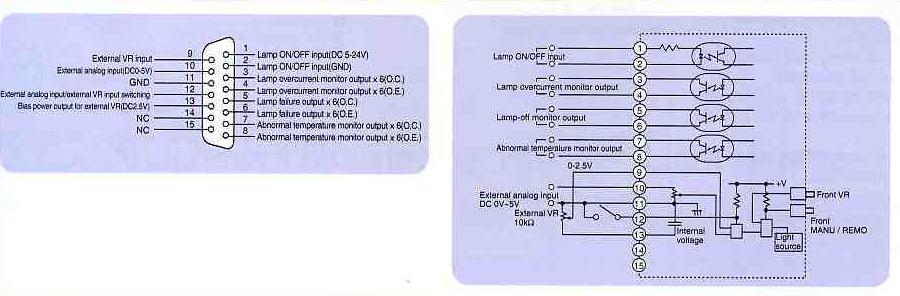

External Analog Control Connection Specifications

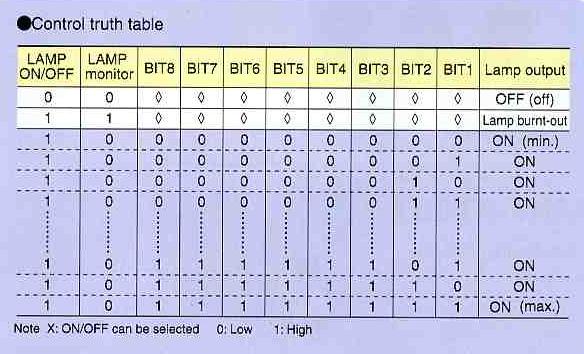

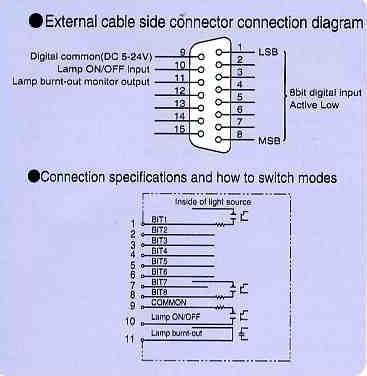

External 8-bit Digital Control Connectio Specifications

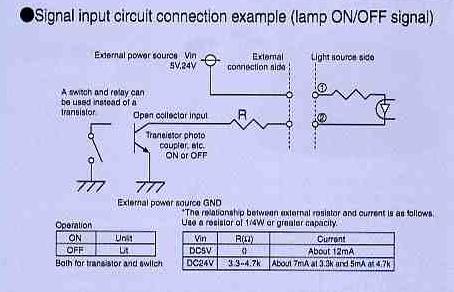

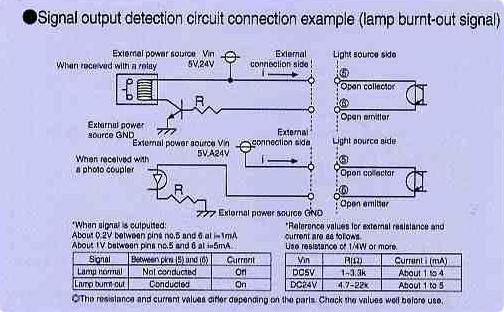

Example of Signal I/O Circuit Connection

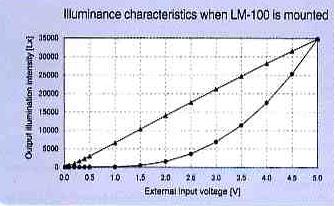

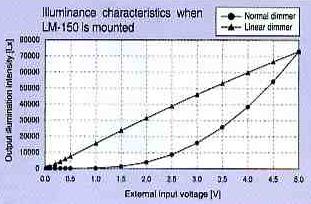

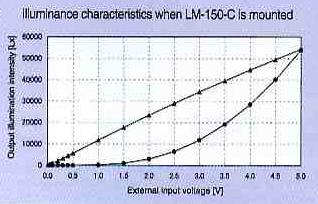

Linear Intessity Control Characteristics(MHAB-150W-LI only)
