. . . . . . . . . . Compact, light weight lamp house with a seperate power source / special power source . . . . . . .
 |

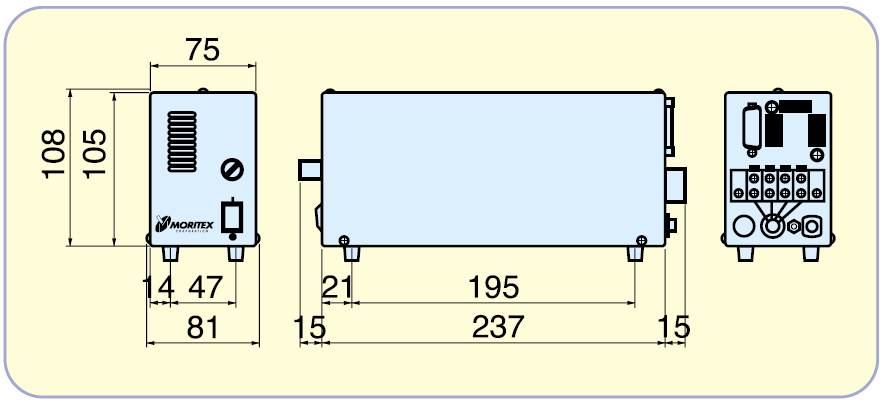

MHF-LH500/100 (* Click for drawing * ) |
 |
MHP-LHPS50/100 (* Click for drawing * ) |
- Compact, light weight lamp house with a seperate power source.
|
- Spercial power source for a lamp house.
- Manual light licontrol / Remote light control (0.5 V analog Voltage).
- Burnt-out lamp signal is outputted.
|
| |
* Coupling cable for MHF-LHPS and MHF-LH50/100 is sold separately. Coupling cable name MC-EXC-40-3M (L=3m), MC-EXC-50-5M (L=5m).
* Refer P.34 for conection specification of re mote operation conector.
|
. . . . . . . . . . High reliable special halogen lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Halogen Lamps
 |
aa |
LM-50 |
LM-100 |
LM-150 |
LM-150C |
Power consumption |
50 W |
100 W |
150 W |
150 W |
Lamp voltage |
12.0 VDC |
11.7 VDC |
14.7 VDC |
14.7 VDC |
Lamp current |
4.2 A |
8.4 A |
10 A |
10 A |
Average lamp life *1 |
2,000 hrs |
1,000 hrs |
50 hrs |
500 hrs |
Average luminosity *2 |
About 18,000 LX |
About 30,000 LX |
About 80,000 LX |
About 45,000 LX |
| aa |
Color temperature |
3,000 ํ K |
3,100 ํ K |
3,400 ํ K |
3,100 ํ K |
* 1. A number of lamp are lit up at the rated voltage and the time until filament break is distributed normaly. Average life is calculated based on the peak time and the time when a half of the lamp's filament break.
* 2. Average luminosity is standard luminosity at 50 mm from the fiber' end face at the maximum volume when moritek standard light guide (MSG4-2200S) is mounted. |
|
