Fixed Magnification MMLs For Alignment

: : : : : : : : : : Fixed Magnification MMLs For Alignment : : : : : : : : : :

MML (Machine Micro Lens) Series models are high performance fixed magnification lenses for alignment. They are small with a long working distance for mounting on equipment and meet required optical performance conditions for alignment and part recognition

* Telecentric optical design ( object side ).
* Equipped with a uniform coaxial illumination system that covers the entire view.
* Small with a long working distance for mounting on equipment.
* A variety of products by WD and camera mount.

MML-WD40 Series (Click Product name For Drawing )
Product name	Magnification	Effective FNO	O/I	WD	Depth of field	Resolution	TV distortion	NA	Weight	Largest Compatible CCD	Mount

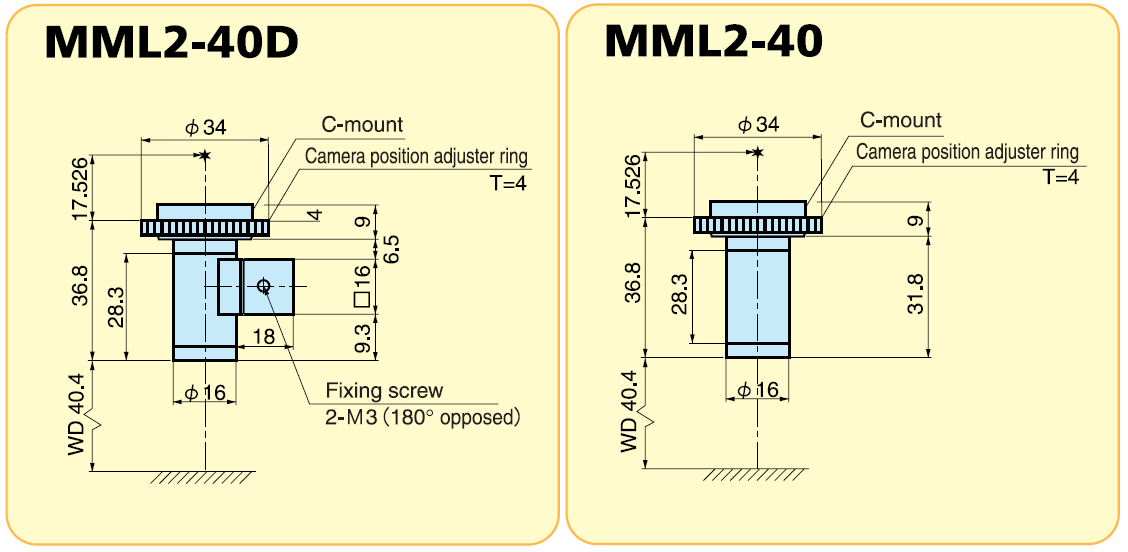

MML2-40/40D	x2	14.3	94.8	40.4 mm	280 um	4.8 um	0.9% or less	0.07	40g/50g	1/2"	c-mount

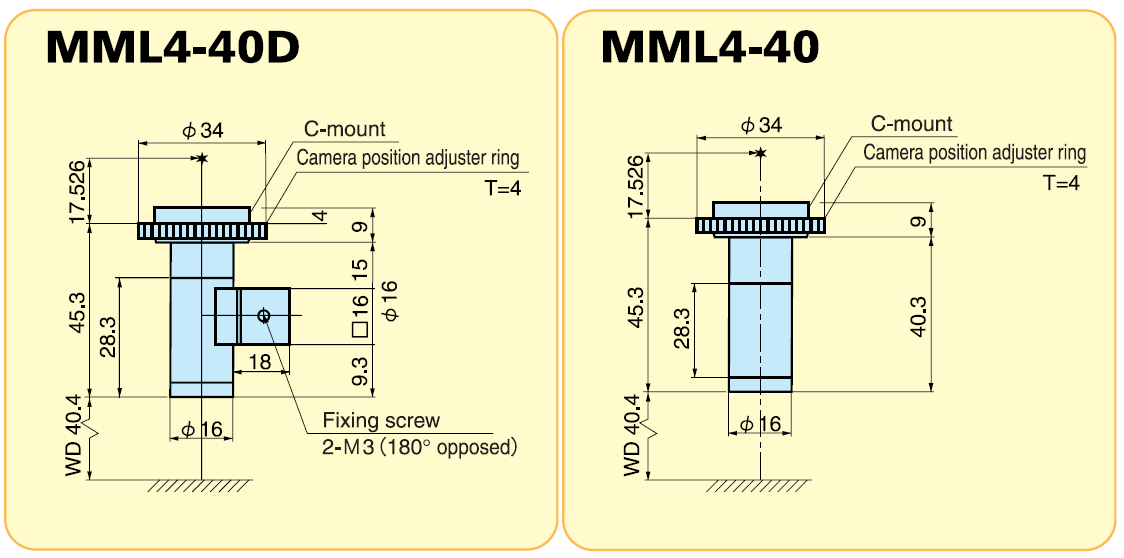

MML4-40/40D	x4	28.6	103.3	40.4 mm	140 um	4.8 um	0.6% or less	0.07	40g/50g	1/2"	c-mount

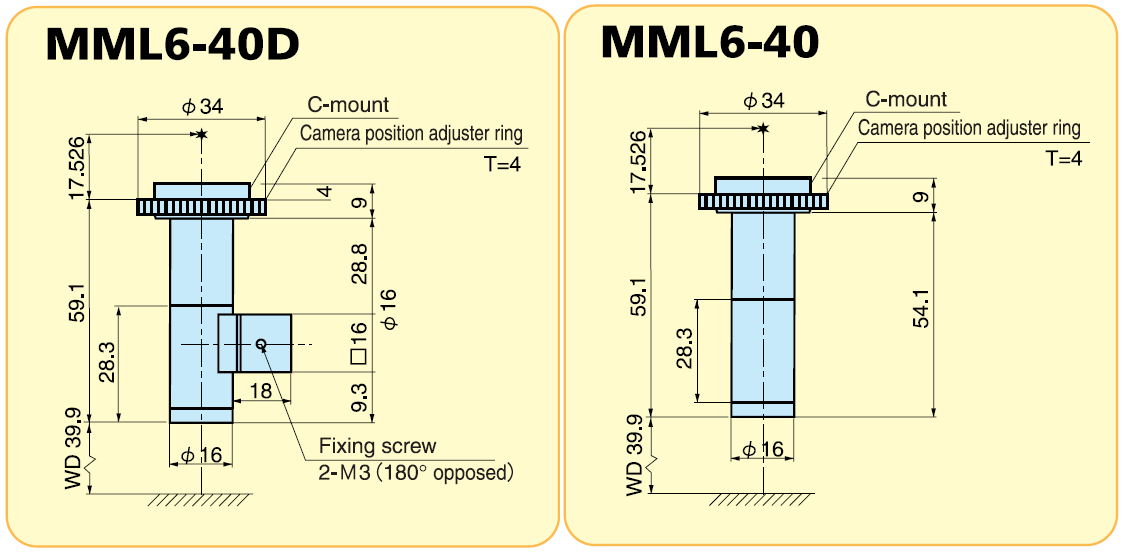

MML6-40/40D	x6	43	116.5	39.9 mm	95 um	4.8 um	0.3% or less	0.07	50g/60g	1/2"	c-mount

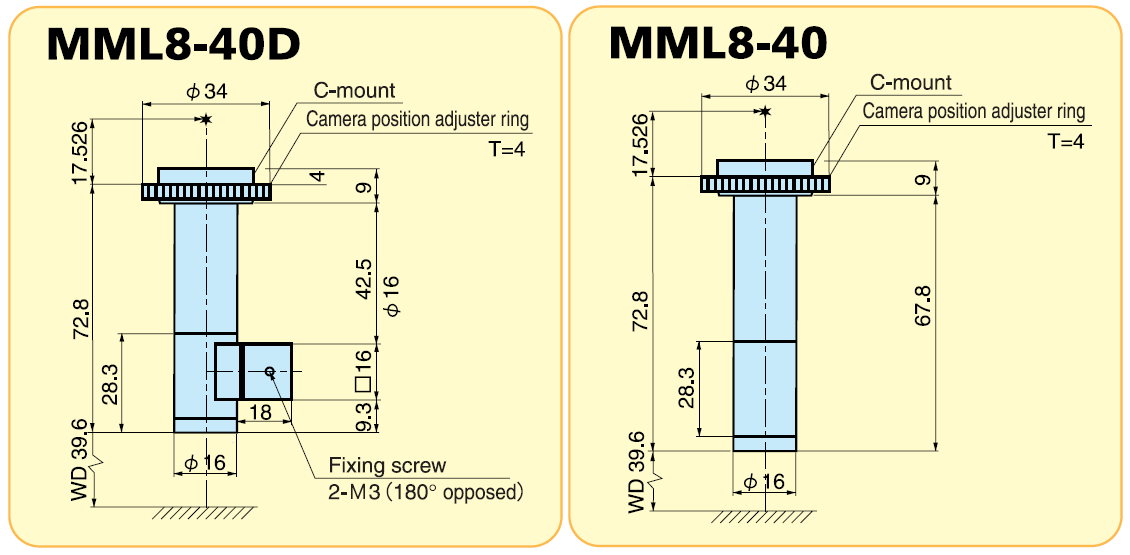

MML8-40/40D	x8	57.3	129.9	39.6 mm	71 um	4.8 um	0.2% or less	0.07	53g/63g	1/2"	c-mount

* Depth of field is calculated assuming a horizontal 320 TV resolution using a 1/2" CCD camera. (Permissible circle of confusion on the image-formation side : 40 um)
* Resolution indicates a theoretical resolution at a wavelength of 550 nm.

MML-WD65 Series (Click Product name For Drawing )
Product name	Magnification	Effective FNO	O/I	WD	Depth of field	Resolution	TV distortion	NA	Weight	Largest Compatible CCD	Mount

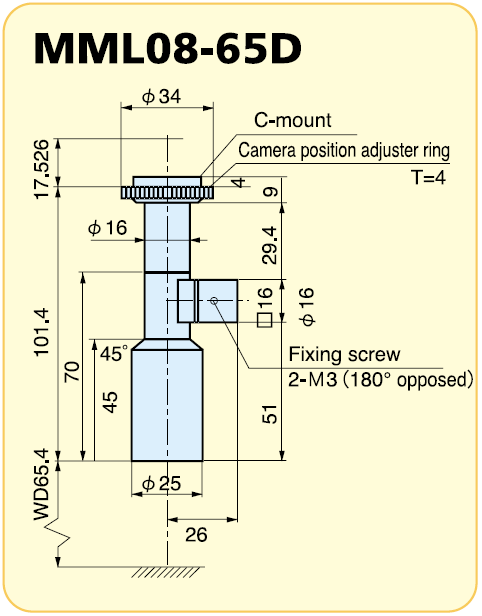

MML08-65D	x0.8	14.9	184.4	64.5 mm	1.9 um	12 um	0.1% or less	0.03	66 g	2/3"	c-mount

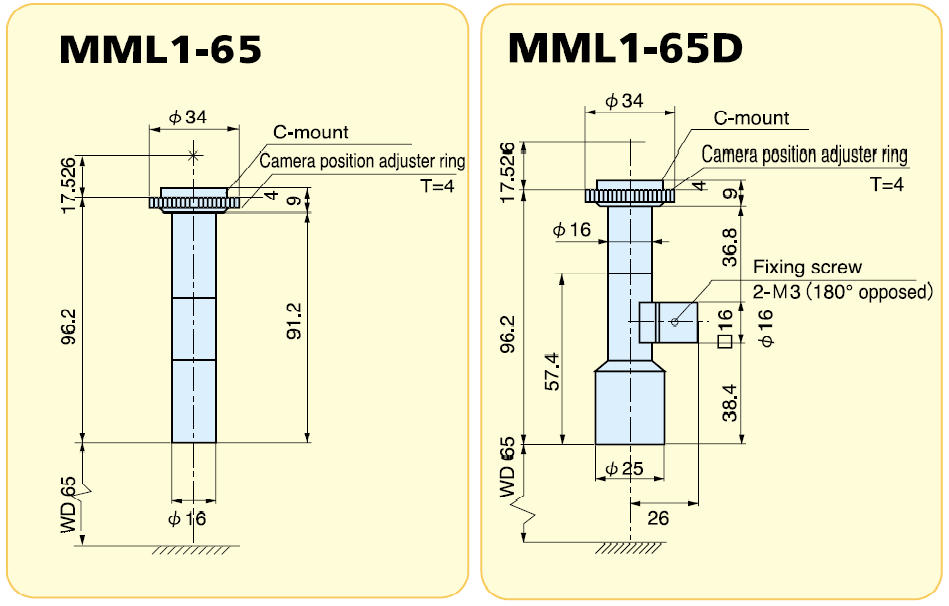

MML1-65/65D	x1	18.6	178.8	65 mm	1.5 um	12 um	0.1% or less	0.03	54g/66g	1/2" / 2/3"	c-mount

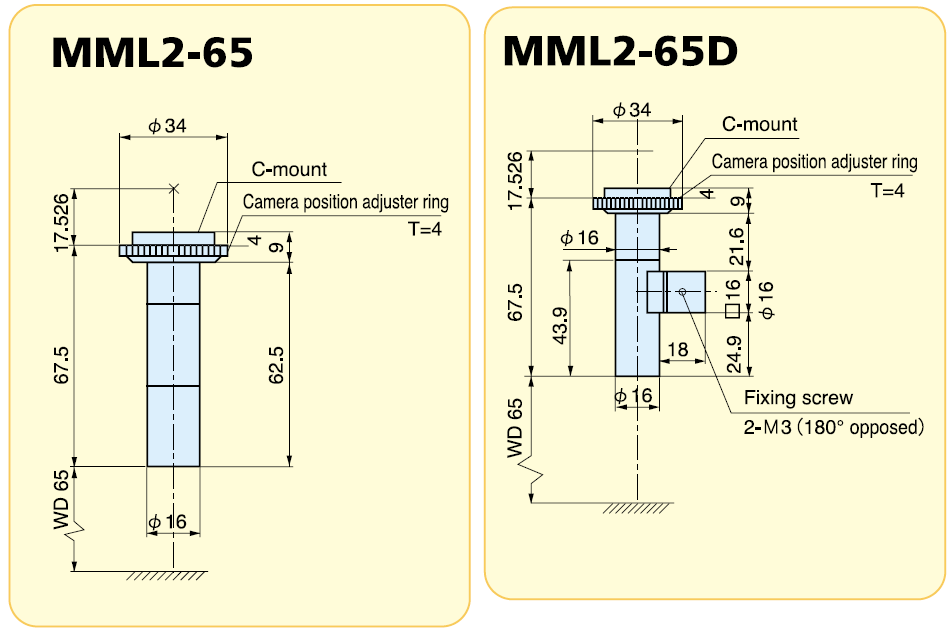

MML2-65/65D	x2	17.4	150.1	65 mm	350 um	5.8 um	0.1% or less	0.06	48g/60g	2/3"	c-mount
MML4-65/65D	x4	27	149.9	65.7 mm	130 um	4.5 um	0.4% or less	0.07	50g/62g	1/2"	c-mount

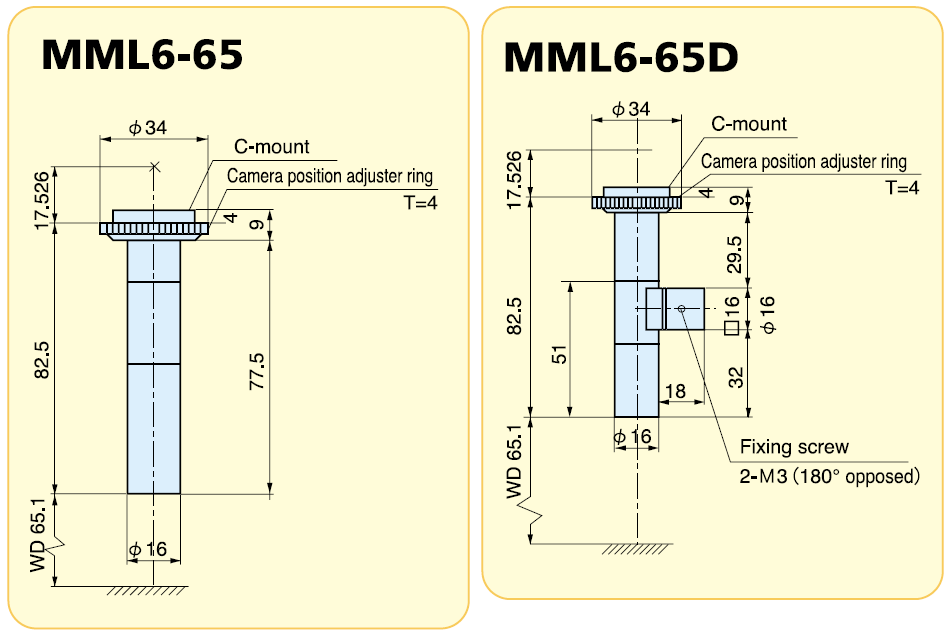

MML6-65/65D	x6	40.8	165.1	65.1 mm	90 um	4.5 um	0.2% or less	0.07	53g/65g	1/2"	c-mount
MML8-65/65D	x8	54.7	180.5	64.7 mm	68 um	4.6 um	0.1% or less	0.07	58g/70g	1/2"	c-mount

MML-WD110 Series (Click Product name For Drawing )
Product name	Magnification	Effective FNO	O/I	WD	Depth of field	Resolution	TV distortion	NA	Weight	Largest Compatible CCD	Mount

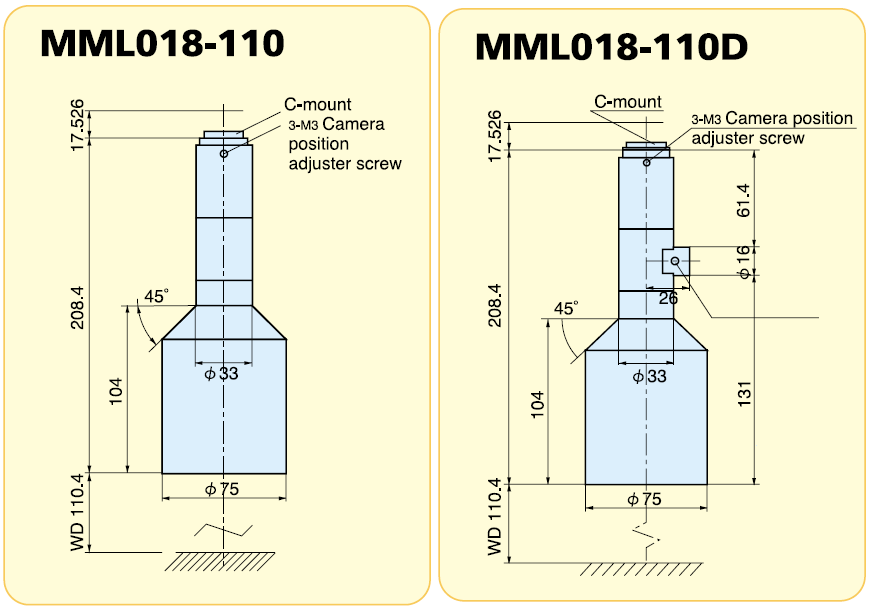

MML018-110/110D	x0.18	6.4	336.3	110.4 mm.	15 mm.	24 um.	0.1% or less	0.01	700g/700g	2/3"	c-mount

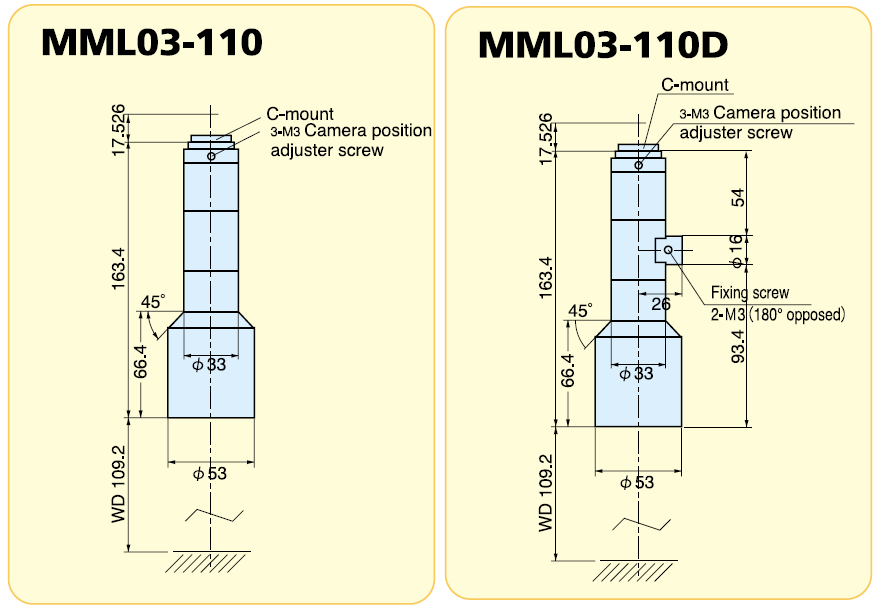

MML03-110/110D	x0.3	7	290.1	109.2 mm.	6 mm.	16 um.	0.3% or less	0.02	380g/380g	2/3"	c-mount

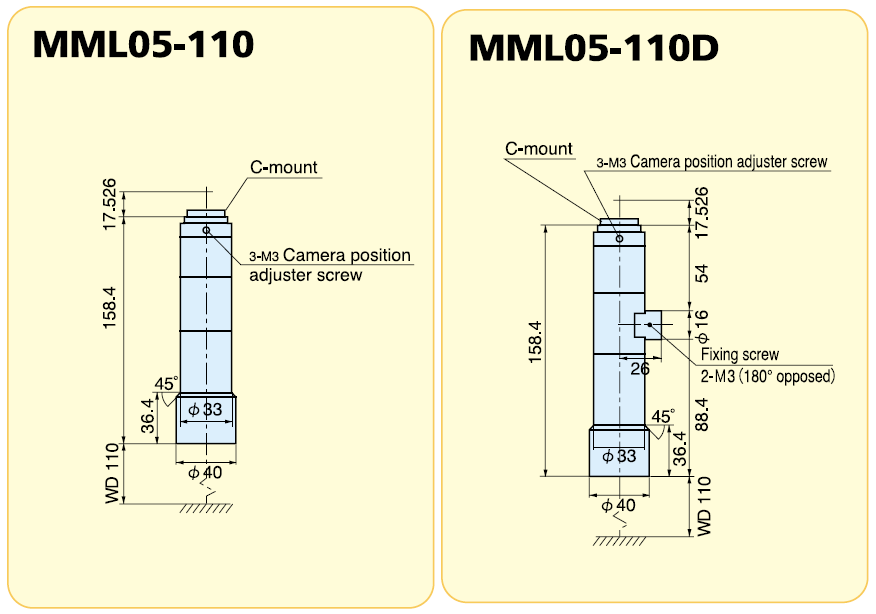

MML05-110/110D	x0.5	11.6	286	110 mm.	3.7 mm.	16 um.	0.3% or less	0.02	280g/280g	2/3"	c-mount

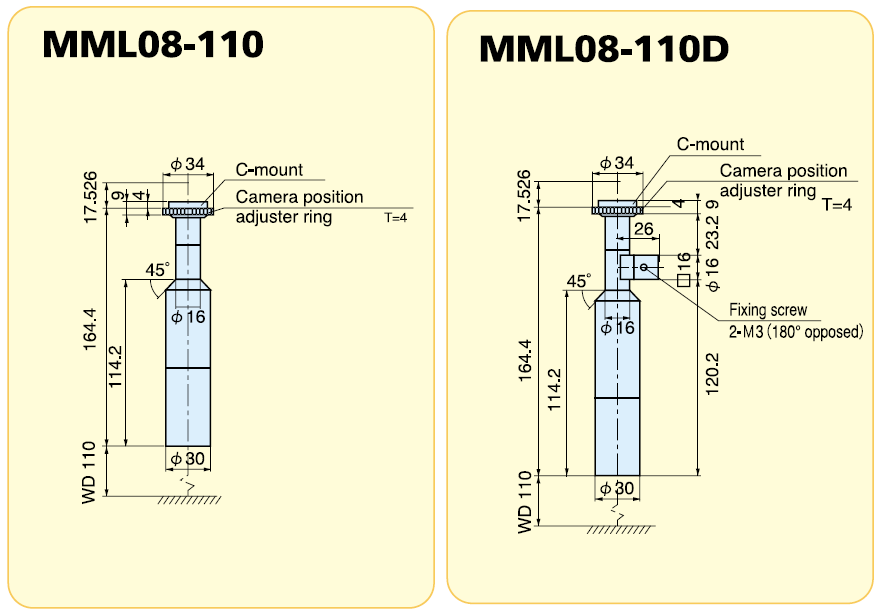

MML08-110/110D	x0.8	16.1	292	110 mm.	2 mm.	14 um.	0.3% or less	0.02	150g/150g	2/3"	c-mount
MML1-110/110D	x1	16.7	287.4	110.3 mm.	1.3 mm.	11 um.	0.2% or less	0.03	140g/140g	2/3"	c-mount

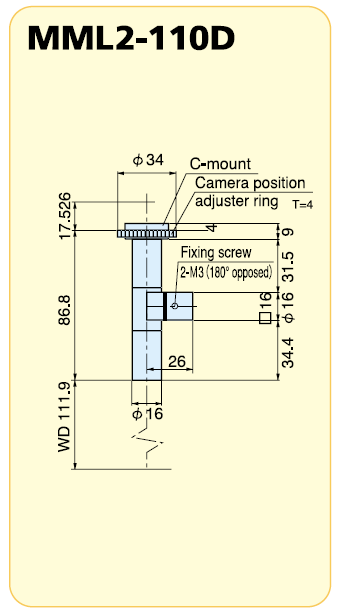

MML2-110D	x2	33.2	216.3	111.9 mm.	670 um.	11 um.	0.1% or less	0.03	73g	2/3"	c-mount

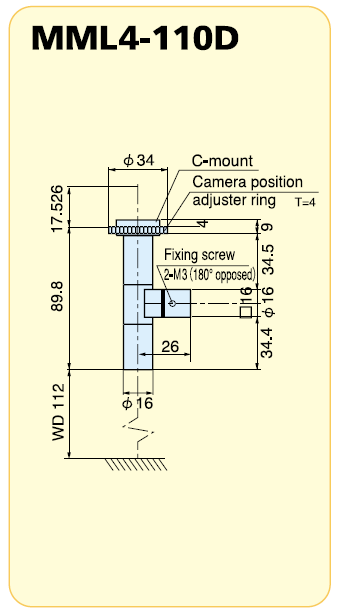

MML4-110D	x4	43.9	219.3	112 mm.	230 um.	7.7 um.	0.2% or less	0.04	75g	2/3"	c-mount
MML6-110D	x6	66.2	242.2	111 mm.	170 um.	7.6 um.	0.2% or less	0.04	78g	2/3"	c-mount

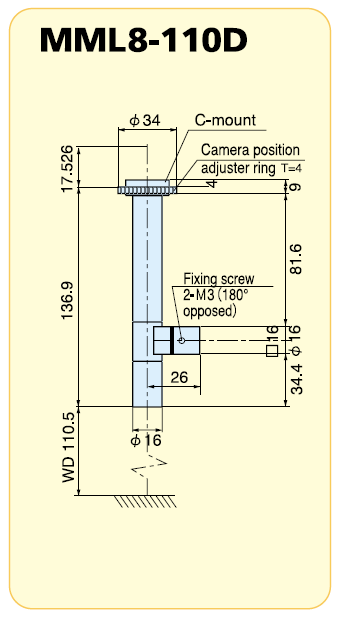

MML8-110D	x8	88	265	110.5 mm.	170 um.	7.6 um.	0.1% or less	0.04	80g	2/3"	c-mount

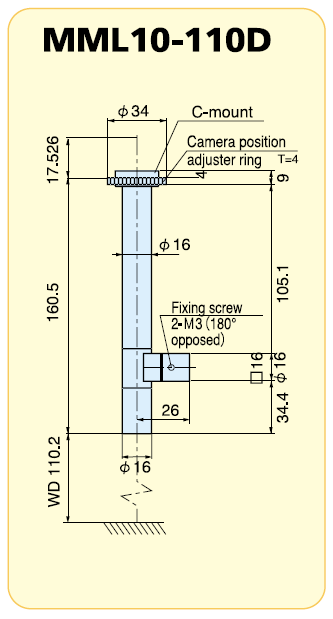

MML10-110D	x10	112.7	288.2	110.2 mm.	180 um.	8 um.	0.1% or less	0.04	85g	2/3"	c-mount

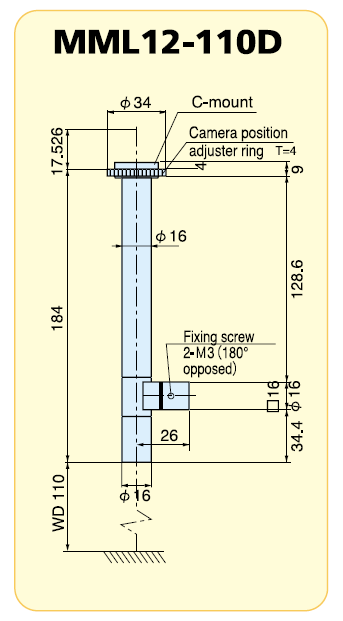

MML12-110D	x12	135.1	311.6	110 mm.	180 um.	10 um.	0.1% or less	0.04	88g	2/3"	c-mount

* Depth of field is calculated assuming a horizontal 320 TV resolution using a 1/2" CCD camera. (Permissible circle of confusion on the image-formation side : 40 um) But * 1 is calculated based on resolution.
* Resolution indicates a theoretical resolution at a wavelength of 550 nm. But * 2 indicates a theoretical resolution when a green filter is used.

MML-WD195 Series (Click Product name For Drawing )
Product name	Magnification	Effective FNO	O/I	WD	Depth of field	Resolution	TV distortion	NA	Weight	Largest Compatible CCD	Mount

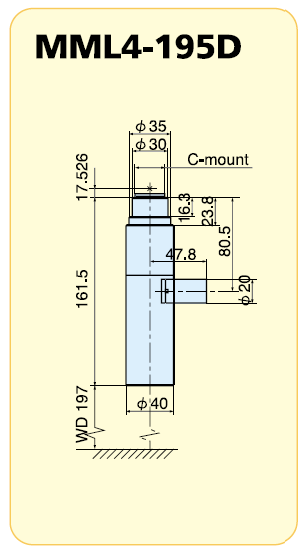

MML4-195D	x4	25.3	376	197 mm.	130 um.	4.2 um.	0.1% or less	0.08	480g	2/3"	c-mount

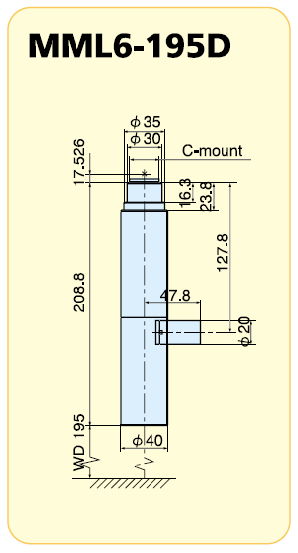

MML6-195D	x6	37.6	421.3	195 mm.	80 um.	4.2 um.	0.1% or less	0.08	490g	2/3"	c-mount

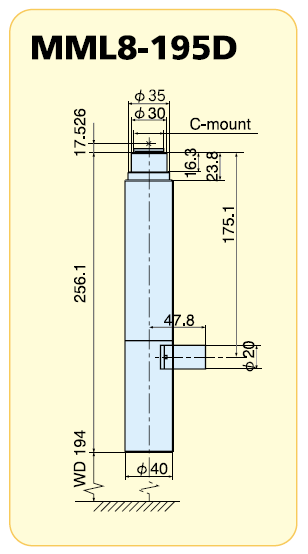

MML8-195D	x8	49.9	467.6	194 mm.	60 um.	4.2 um.	0.1% or less	0.08	500g	2/3"	c-mount

**MML-LongWD series** (Click Product name For Drawing )
Product name	Magnification	Effective FNO	O/I	WD	Depth of field	Resolution	TV distortion	NA	Weight	Largest Compatible CCD	Mount

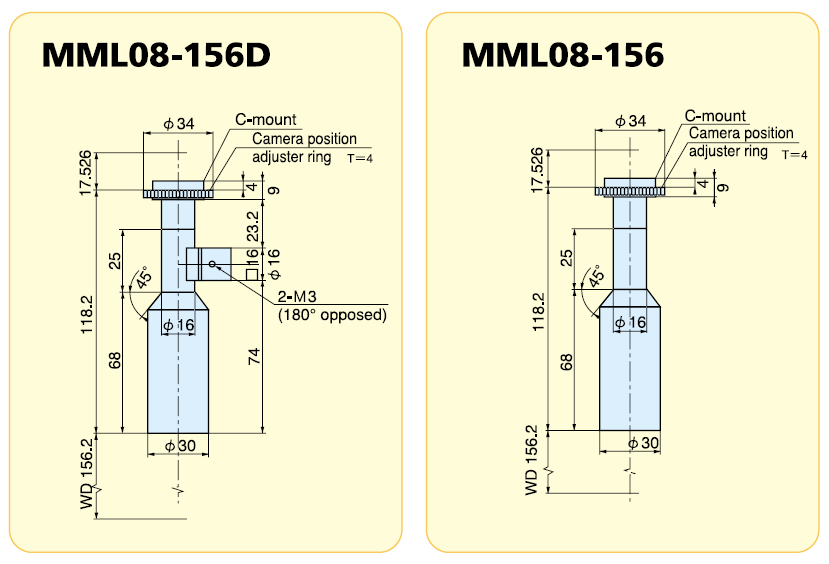

MML08-156/156D	x0.8	16.1	292	156.2 mm.	2 mm.	14 um.	0.3% or less	0.02	125g/130g	2/3"	c-mount

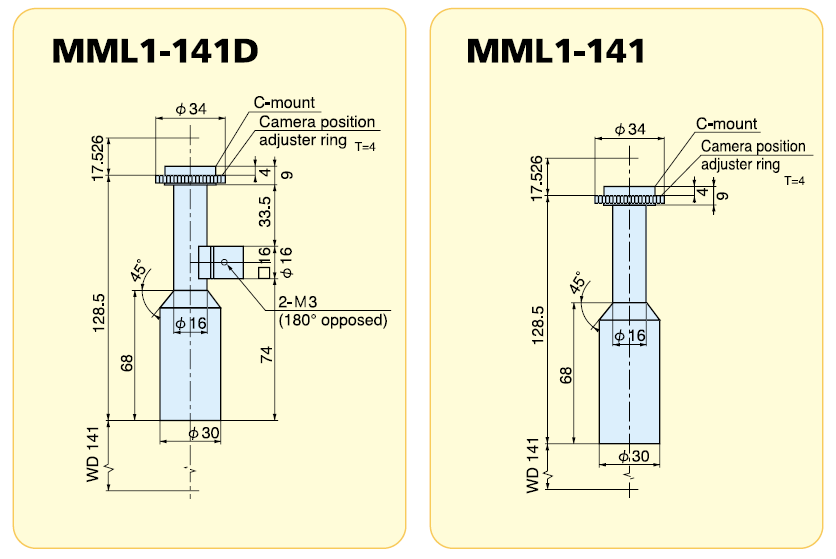

ML1-141/141D	x1	16.7	287.4	141.3 mm.	1.3 mm.	11 um.	0.2% or less	0.03	115g/120g	2/3"	c-mount

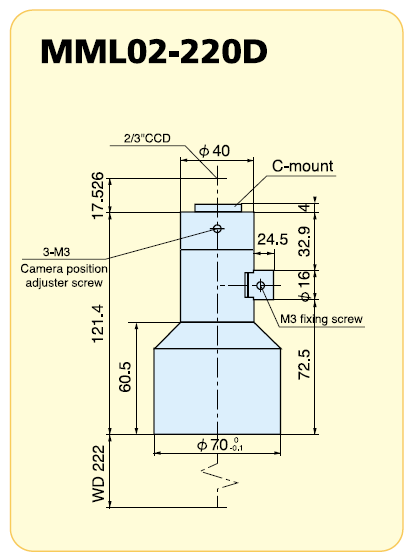

MML02-220D	x0.2	5	360.9	222 mm.	10 mm.	16.7 um.	0.1% or less	0.02	450g	2/3"	c-mount
MML2-220	x2	18	397.6	220 mm.	370 um.	6.2 um.	0.2% or less	0.05	400g	2/3"	c-mount

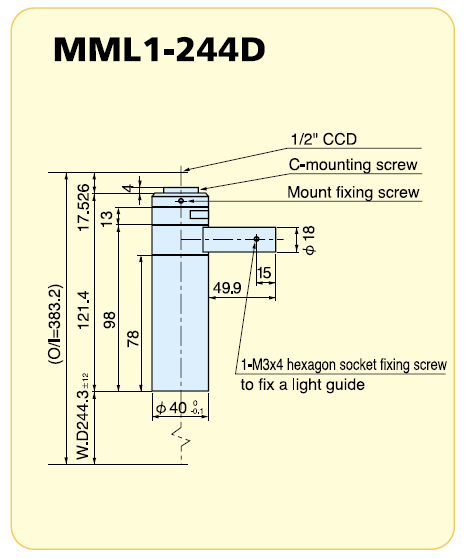

MML1-244D	x1	11	383.2	244.3 mm.	880 um.	7.4 um.	0.1% or less	0.05	260g	1/2"	c-mount
MML2-221D	x2	21.9	406.4	221 mm.	220 um.	7.4 um.	0.1% or less	0.05	320g	1/2"	c-mount

**MML-CM1 Series (WD65-CM1 & WD110-CM1)** (Click Product name For Drawing )
Product name	Magnification	Effective FNO	O/I	WD	Depth of field	Resolution	TV distortion	NA	Weight	Largest Compatible CCD	Mount

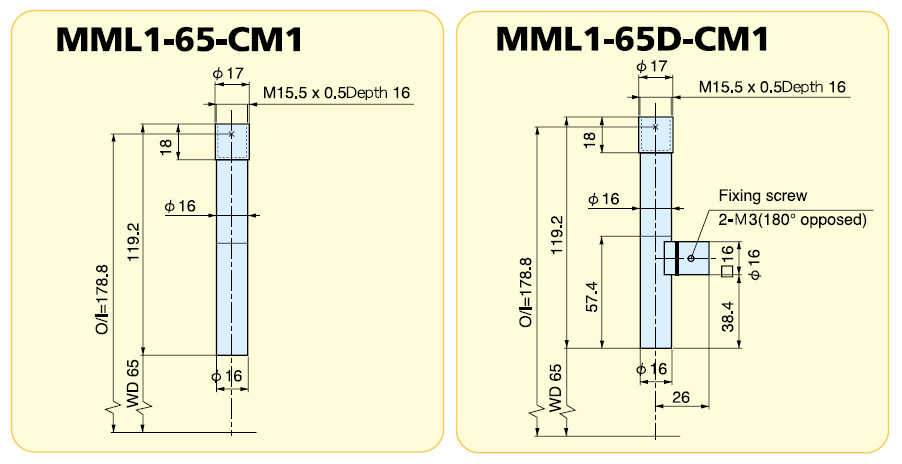

MML1-65-CM1/D-CM1	x1	18.6	178.8	65 mm.	1.5 mm.	12 um.	0.1% or less	0.03	55g/62g	1/2"	M15.5 P0.5

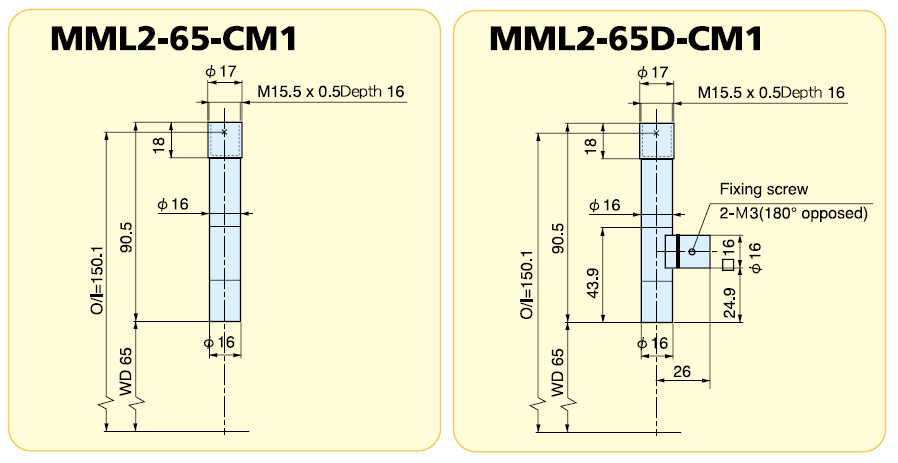

MML1-65-CM1/D-CM1	x2	17.4	150.1	65 mm.	350 um.	5.8 um.	0.1% or less	0.06	48g/55g	1/2"	M15.5 P0.5

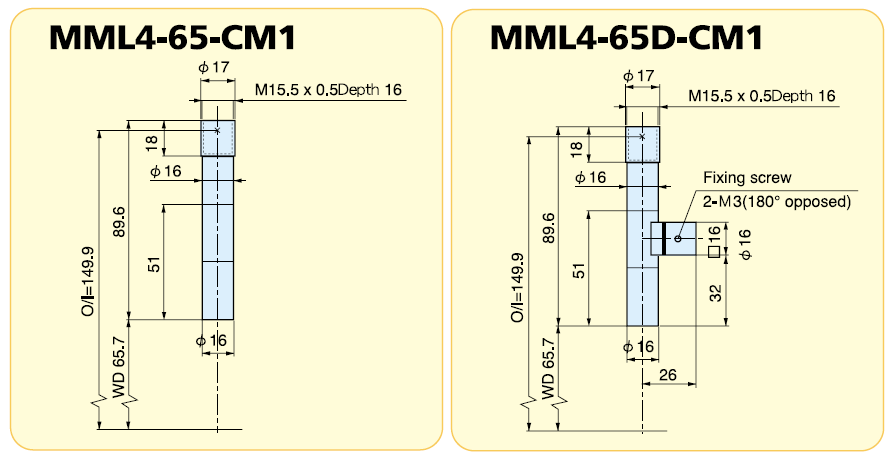

MML1-65-CM1/D-CM1	x4	27	149.9	65.7 mm.	130 um.	4.5 um.	0.4% or less	0.07	50g/57g	1/2"	M15.5 P0.5

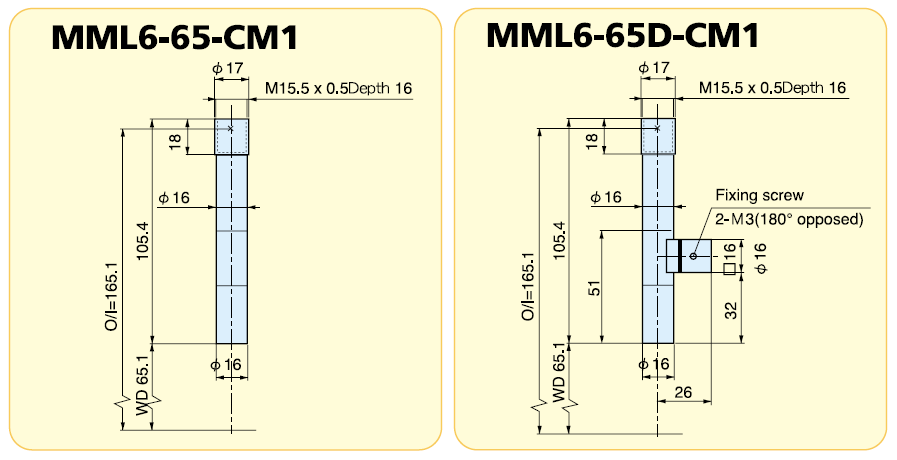

MML1-65-CM1/D-CM1	x6	40.8	165.1	65.1 mm.	90 um.	4.5 um.	0.2% or less	0.07	53g/60g	1/2"	M15.5 P0.5

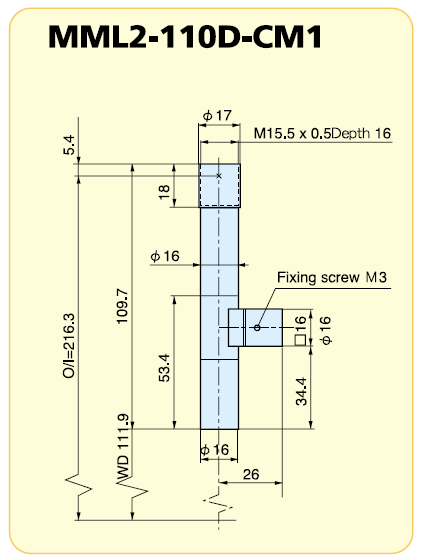

MML2-110D-CM1	x2	33.2	216.3	111.9 mm.	670 um.	11 um.	0.1% or less	0.03	68g	1/2"	M15.5 P0.5

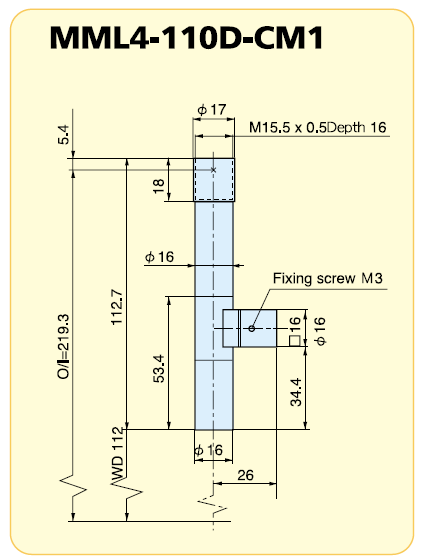

MML4-110D-CM1	x4	43.9	219.3	112 mm.	230 um.	7.7 um.	0.2% or less	0.04	70g	1/2"	M15.5 P0.5

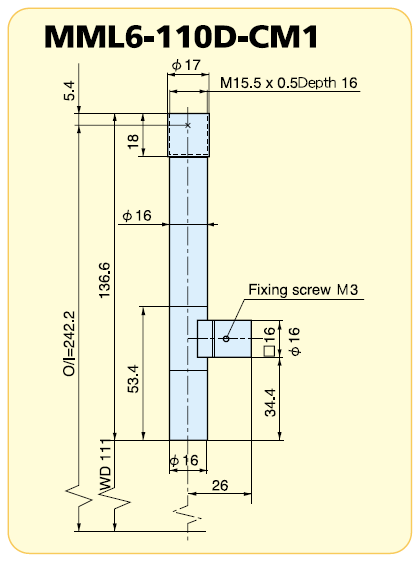

MML6-110D-CM1	x6	66.2	242.2	111 mm.	170 um.	7.6 um.	0.2% or less	0.04	73g	1/2"	M15.5 P0.5

* Depth of field is calculated assuming a horizontal 320 TV resolution using a 1/2" CCD camera. (Permissible circle of confusion on the image-formation side : 40 um)
* But * 1 is calculated based on resolution.
* Resolution indicates a theoretical resolution at a wavelength of 550 nm.

MML-CS1 series (WD65-CS1 & WD110-CS1) (Click Product name For Drawing )
Product name	Magnification	Effective FNO	O/I	WD	Depth of field	Resolution	TV distortion	NA	Weight	Largest Compatible CCD	Mount

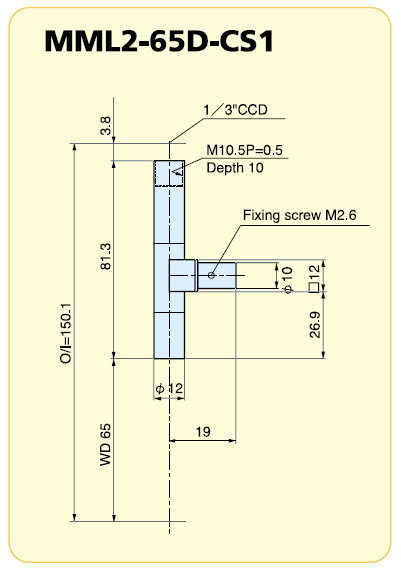

MML2-65D-CS1	x2	17.4	150.1	65 mm.	260 um.	5.8 um.	0.1% or less	0.06	45g	1/3"	M10.5 P0.5

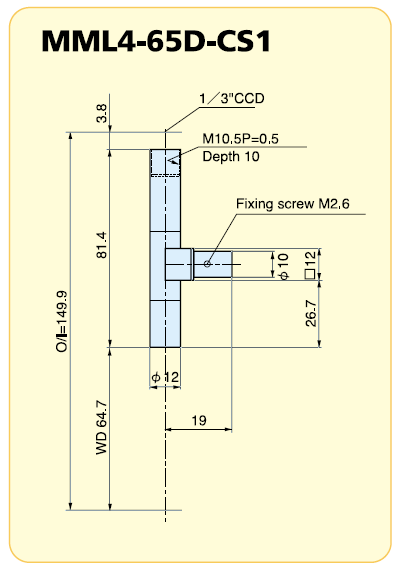

MML4-65D-CS1	x4	29.8	149.9	64.7 mm.	110 um.	5 um.	0.2% or less	0.07	47g	1/3"	M10.5 P0.5

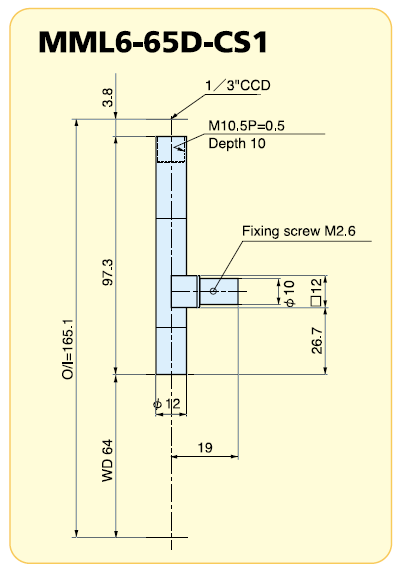

MML6-65D-CS1	x6	44.2	165.1	64 mm.	74 um.	5 um.	0.1% or less	0.07	50g	1/3"	M10.5 P0.5

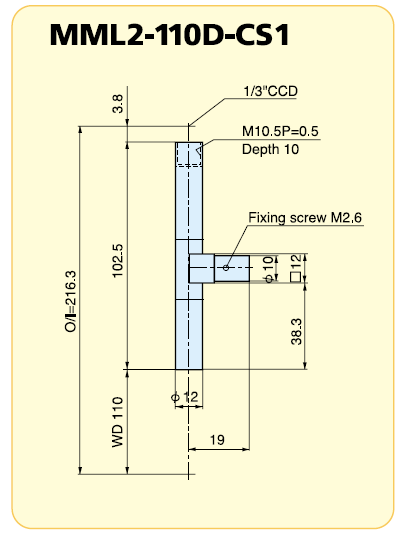

MML2-110D-CS1	x2	33.2	216.3	110 mm.	500 um.	11 um.	0.1% or less	0.03	60g	1/3"	M10.5 P0.5

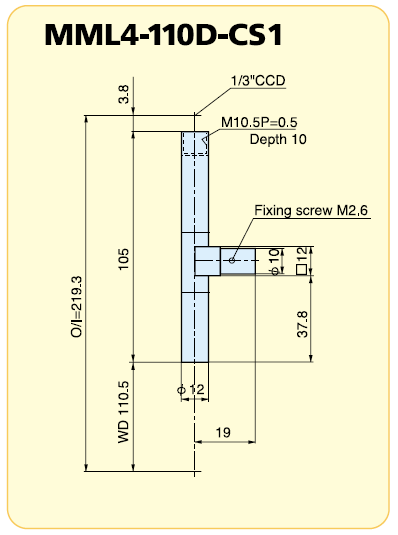

MML4-110D-CS1	x4	51.1	219.3	110.5 mm.	220 um.	8.6 um.	0.1% or less	0.04	60g	1/3"	M10.5 P0.5

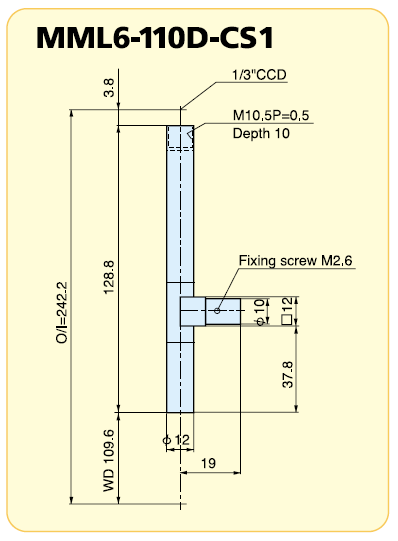

MML6-110D-CS1	x6	76.3	242.2	109.6 mm.	220 um.	8.5 um.	0.1% or less	0.04	63g	1/3"	M10.5 P0.5

* Depth of field is calculated assuming a horizontal 320 TV resolution using a 1/3" CCD camera. (Permissible circle of confusion on the image-formation side : 40 um)
* Resolution indicates a theoretical resolution at a wavelength of 550 nm.
