the MG -Wave series
New A080W series (supported up to total 0.8A)
Digital light adjustment for 1 channel and 2 channel types, multiple input (AC100V to 230V), and CE mark compliant (scheduled in July 2005)
New constant current power source designed for LED lights (except for the MCEP series)
As part of our initiatives to address environmental issues, this model is designed in compliance with the Restriction of Hazardous
Substances in Electrical and Electronic Equipment (RoHS directive) to be introduced in Europe in July 2006, and will comply with
the RoHS directives in the future.
Model |

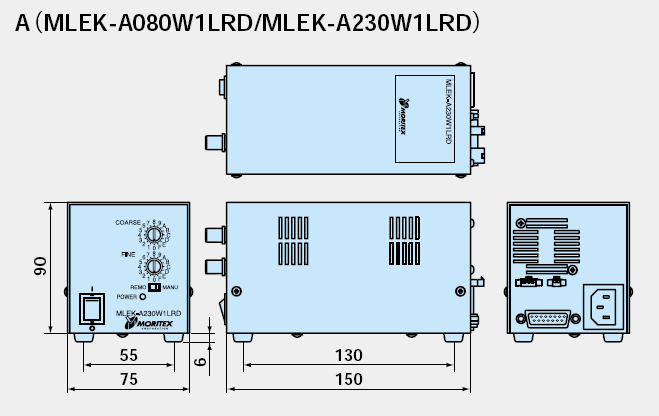

MLEK-A080W1LRD |

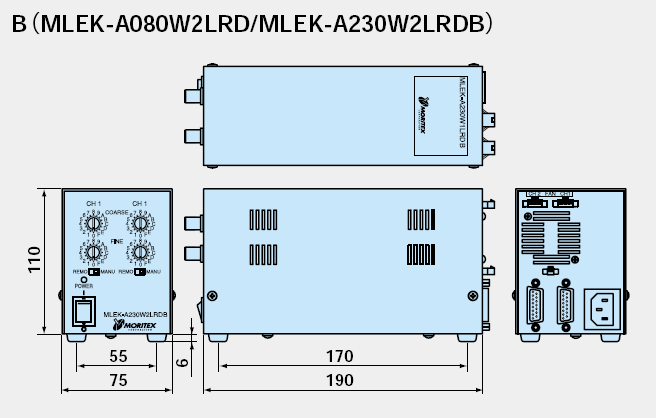

MLEK-A080W2LRD |
|---|---|---|
|
Single-channel output of 0.8A (for connection to all lights except the MCEP Series)
|
Two-channel, maximum of 0.8A for each channel(for connection to all lights except the MCEP Series)
|
|
A
|
B
|
|
AC100-230V 50/60Hz
|
AC100-230V 50/60Hz
|
|
0.3/0.15 A (at AC 100/230V)
|
0.3/0.15 A (at AC 100/230V)
|
|
15A or lower (at AC100V)
35A or lower (at AC230V) |
15A or lower (at AC100V)
35A or lower (at AC230V) |
|
0~+45 C
|
0~+45 C
|
|
Continuous DC output
|
Continuous DC output
|
|
Constant current control (the current can be changed)
|
Constant current control (the current can be changed)
|
|

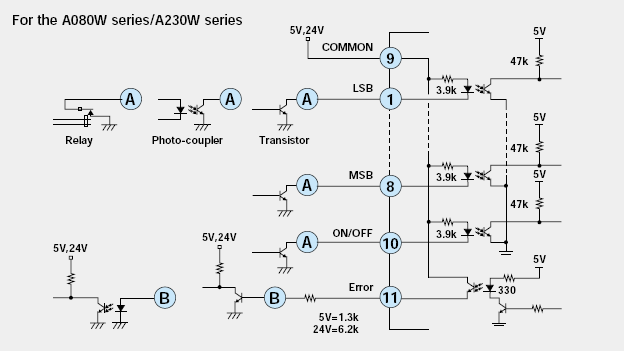

Supported (8bit digital)
|
Supported (for each channel,8bit digital)
|
|
Supported (photocoupler insulation)
|
Supported (photocoupler insulation)
|
|
Supported (photocoupler insulation, control error)
|
Supported (photocoupler insulation, control error)
|
|
Natural air cooling
|
Natural air cooling
|
|
Horizontal installation on the rubber supports at the buttom of the unit
|
Horizontal installation on the rubber supports at the buttom of the unit
|
|
Approximately 1kg
|
Approximately 1kg
|
Model |
Specifications |
MC-AC200A-2.0M |
AC200V power supply cable (European plug type, 2m) |
MC-AC200B-2.0M |
AC200V power supply cable (JIS plug type, 2m) |
Digital light adjustment for 1 channel and 2 channel types, multiple input (AC100V to 230V), and CE mark compliant (scheduled in July 2005) * it is possible to support external analog light adjustment by remodeling |
 |
Model |
Exterior view
|
Luminescent color
|
|---|---|---|
|
Single-channel output of 2.3A (for connection to all lights except the MCEP Series) |
Single-channel output of 2.3A (for connection to all lights except the MCEP Series)
|
|
A
|
B
|
|
AC100 - 230V 50/60 Hz
|
AC100 - 230V 50/60Hz
|
|
0.7/0.4 A (at AC 100/230V)
|
0.7/0.4 A (at AC 100/230V)
|
|
15A or lower (at AC100V) 35A or lower (at AC230V) |
15A or lower (at AC100V) 35A or lower (at AC230V) |
|
0~+45C |
0~+45C |
|
Continuous DC output |
Continuous DC output |
|
Constant current control (the current can be changed) |
Constant current control (the current can be changed) |
|
Supported (8bit digital) |
Supported (for each channel, 8bit digital) |
|
Supported (photocoupler insulstion) |
Supported (photocoupler insulstion) |
|
Supported (photocoupler insulation, control error) |
Supported (photocoupler insulation, control error) |
|
forcible air cooling |
forcible air cooling |
|
Horizontal installation on the rubber supports at the bottom of the unit |
Horizontal installation on the rubber supports at the bottom of the unit |
|
Approximately 1.1kg |
Approximately 1.4kg |
Model
|
Exterior view
|
|---|---|
MC-AC200A-2.0M |
AC200V power supply cable (European plug type, 2m)
|
MC-AC200B-2.0M |
AC200V power supply cable (JIS plug type, 2m)
|
