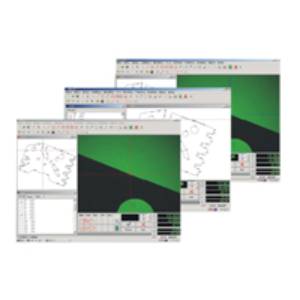

2D Measuring Software for VMM

Applications:
M2D measuring application software which base on windows environment is developed by our company, It can visually analysis the 2D measuring data. It is used in the scanning of dies. It is suitable for the instruments with RS232 interface

Features:
1.          Measure the Point, Line, Circle, Arc and Ellipse feature with multi-point;
2.          The functons of Axis-skew and coordinate-shift are very convenient;
3.          The functions of element-combination can enhance the efficiency;
4.          MACRO function;
5.          Save as *.dxf and edit in AutoCAD;
6.          The data can be sent to Excel, can draw easy Xbar-S graph;
7.          Shift between in English and Chinese;
8.          Record, edit and run the program.

Functions:
1.       Element measure:Can measure the Point, Circle, Arc and Angle.Can measure the rectangle with state points.Can indentify the Point,Line,Circle and the Arc Automatically.
2.       Element construct: Construct the Center, Point of intersection, Midpoint, Line, Circle and Angle, element preset: Point, Line, Arc, Angle.
3.       Graph manage: Coordinate move and coordinate skew, andy axis skew.* Zoom in, Zoom out, Move, Print, Select, Cancle select, Delete.
4.       Set the image's grayness, saturation, contrast, the image can be saved as *.bmp.
5.       Multiple ways of detecting, can gather the point automatically.*Cross detecting, The colour of the edge changes.Gather the point by manual.* The image support S-video input, the image is 640*480mm.

Recommend Computer configuration:
1.          Hardware: P4, 1.7G, USB interface and PCI slots.
2.          Shielding resolution: 1024*768(best); Screen color quality: 24"or 32".
3.          Operation system: Windows2000, Windows XP.
4.          Application: Excel, AutoCAD
