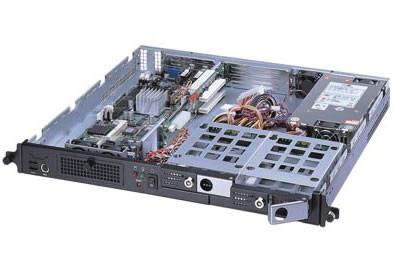

RCK-103BR

»
1U 19" Rackmount Heavy duty steel construction
»
Only 422mm (16.6") depth
»
Supports Full Size SBC through PICMG1.0/ 1.3 butterfly backplane
»
Drive Bays: (1) Slim CD-ROM, (2) 3.5" SATA HDD mobile racks , (1) 2.5" space for SSD or HDD
»
USB and PS/2 ports on the front panel
»
RS-232 on front and rear panel
»
(3) 4cm ball bearing fans to ensure excellent heat dissipation
»
Optional 250/300W ATX power supply included
»
Full extension slide rail

Board Support Full size Single Board Computer
Expansion Slots PICMG 1.0 backplane with 3 PCI slots or PICMG 1.3 backplane with 1 PCIe x16 slot
Drive Bays (1) Slim CD-ROM, (2) 3.5" SATA HDD mobile racks, (1) 2.5" space for SSD or HDD
Front Panel On/Off Switch and Reset Switch, Power On/Off LED and HDD LED
Power Supply 250/300W ATX PFC power supply
Cooling Three 4cm ball bearing fans
Dimensions 430.5(W) x 422(D) x 44.2(H) mm; 16.9 (W) x 16.6 (D) x 1.7 (H) inches
Gross Weight 10.8kg



RCK-103BR-403P-250W 1U chassis RCK-103BR with (1) PICMG & (3) PCI slots backplane and 1U 250W ATX PFC power supply
RCK-103BR-403P-300W 1U chassis RCK-103BR with (1) PICMG & (3) PCI slots backplane and 1U 300W ATX PFC power supply
RCK-103BR-201E-250W 1U chassis RCK-103BR with (1) PICMG1.3 & (1) PCI-express x16 slot backplane and 1U 250W ATX PFC power supply
RCK-103BR-201E-300W 1U chassis RCK-103BR with (1) PICMG1.3 & (1) PCI-express x16 slot backplane and 1U 300W ATX PFC power supply



Backplane PICMG 1.0 BP-403PA0-1U
PICMG 1.3 PCIE-201E
Power Supply
ZIPPY
P1G-6250P
(250W)
ZIPPY
P1G-6300P
(300W)
