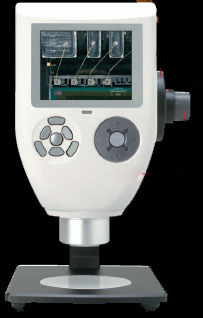

The MSX-500Di digital microscope, with its 2 megapixel CCD camera, features an integrated 3.5" LCD monitor and is a stand alone unit for inspection and saving images. The USB connection allows for image previews as well as camera control and file transfers (for mass storage) with a PC.Lens magnification is 1 to 500x like the INF-500 Series (magnification calculated on a 14" monitor). Illumination for the unit is in the form of 27 LEDs, which are separated into 7 blocks that can be switched as desired. This allows for optimum lighting for the subject.

Easy operation
* Operation is so simple

- Screen that instanthly displays the current settings - Digital display of magnification information and auto-scaling.

Recorded images can be shown on the display. Each push of the button will display the next new image, while each push of the button will display the next new image, while each push of the next old image.

LED illumination can be turned ON/OFF for each block as desired. Illumination for the unit is in the form of 27 LED lights, which provides the most optimum lighting for each piece of work. Illumination is separated into 7 blocks and can be switched as desired, allowing clear observation of the work. Example

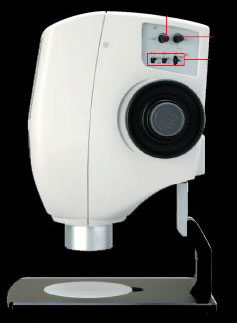

The camera can be controlled (preview function) via the USB connection as well as for file transfers (mass storage function) (available only with Windows XP SP2)

Storage size for each image Symbol SD card JPEG BMP S 640 x 480 Approx. 130 KB Approx. 900 KB M1 800 x 600 Approx. 190 KB Approx. 1400 KB M2 1280 x 960 Approx. 440 KB Approx. 3600 KB L 1600 x 1200 Approx. 730 KB Approx. 5600 KB The size differs slightly for each image.

Product Specification

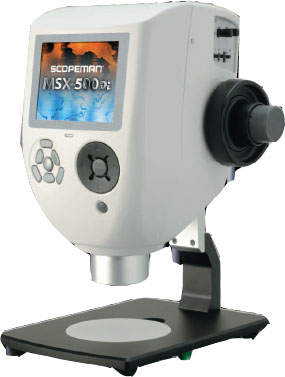

Product name	SCOPEMAN MSX-500Di
Camera	1/1.8" interline CCD image sensor, 2.11 megapixel total
Number of effective pixels	2.01 megapixel
Scanning method	Interlace
Magnification	1 to 500x calculated with *14" monitor magnification
Light source	27 high luminance white LEDs; Light up switch/light adjustment function
LCD monitor	3.5" TFT color LCD (LED backlight)
Interface	USB Ver1.1 Mass storage/based on USB video Class *Compatible with Windows@XP SP2 or higher (Recommended PC-CPU: Pentium 4 or higher, memory: 512 MB or higher)
Recordable media	SD card
Recordable formats	BMP/JPEG (still image)
Software	Measurements between 2 points; angle; area (all manual measurements)
Temperature range	5 C to 40 C
Power	AC Adapter; AC100 - 250V; DC12V; 3A
Optional	Lithium ion batery; Light permeation unit; External freeze switch
Unit size (mm)	164.20mm (width) x 220.72mm (height) x 181mm (depth)
Weight	Approximately 2.1kg (including AC adapter)
Accessories	SD card; USB cable; Video card; AC adapter; Software CD-ROM; User manual

FIGURE (mm)
