Linear Guideway : HG Series



Applications:

Machining centers
Machine tools
Heavy cutting machines
Grinding machines
Injection molding machine
Automatic equipment
High speed transfer device

More Information:

Specs:
Downloads:

Type
Shape
Height
(mm)

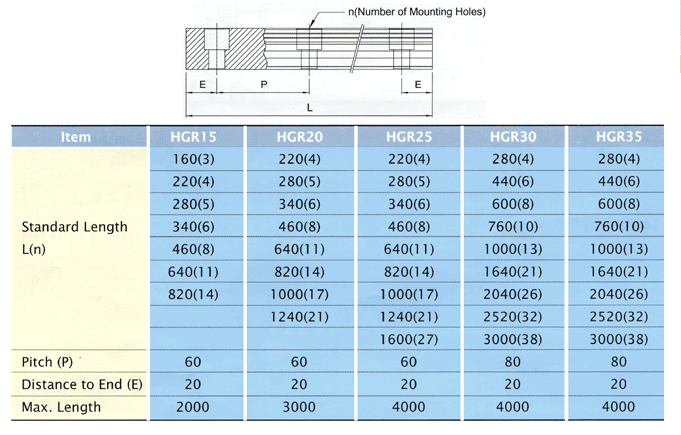

Rail Length
(mm)

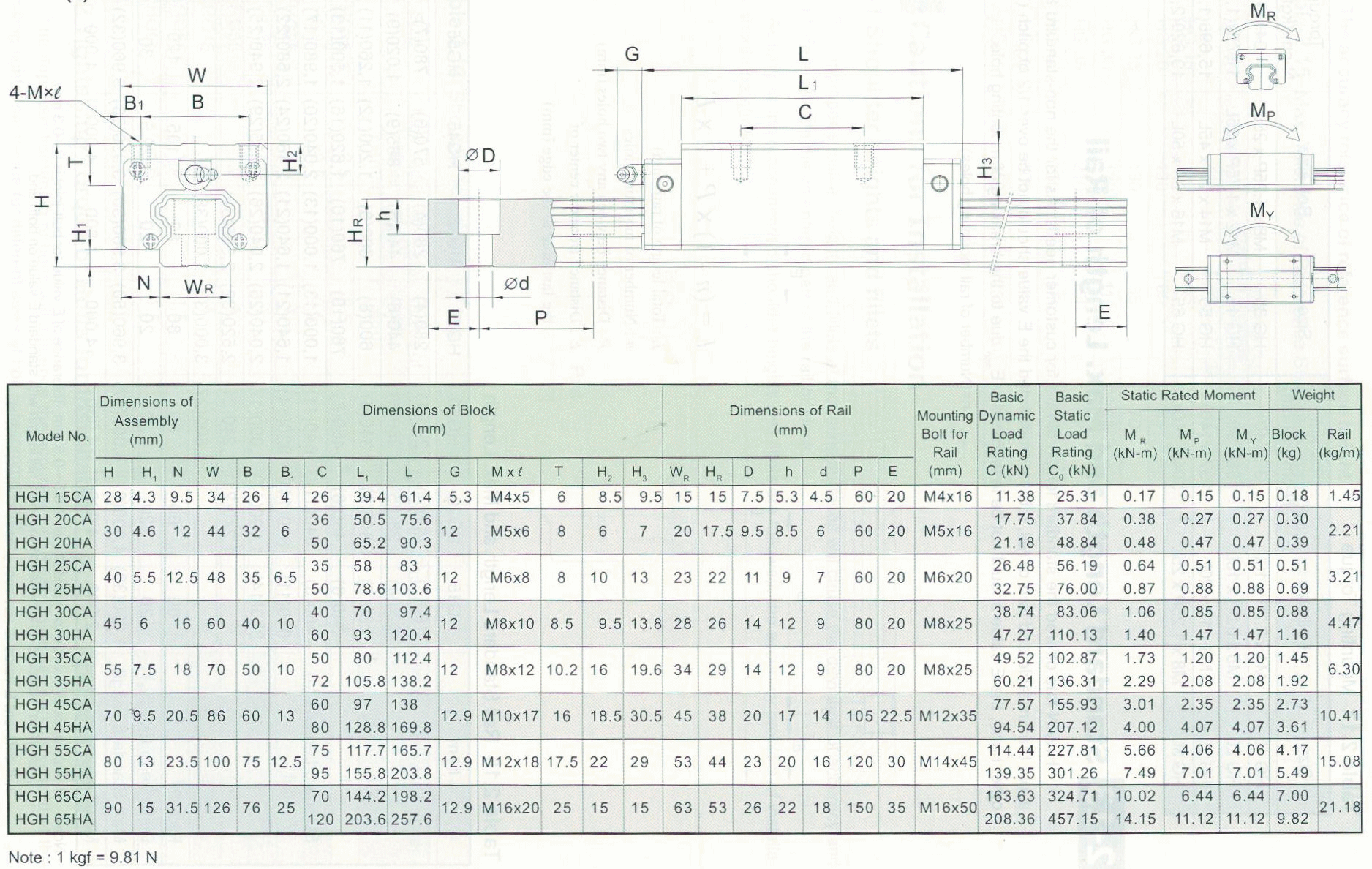

Square
HGH
28 - 55
100 - 4000

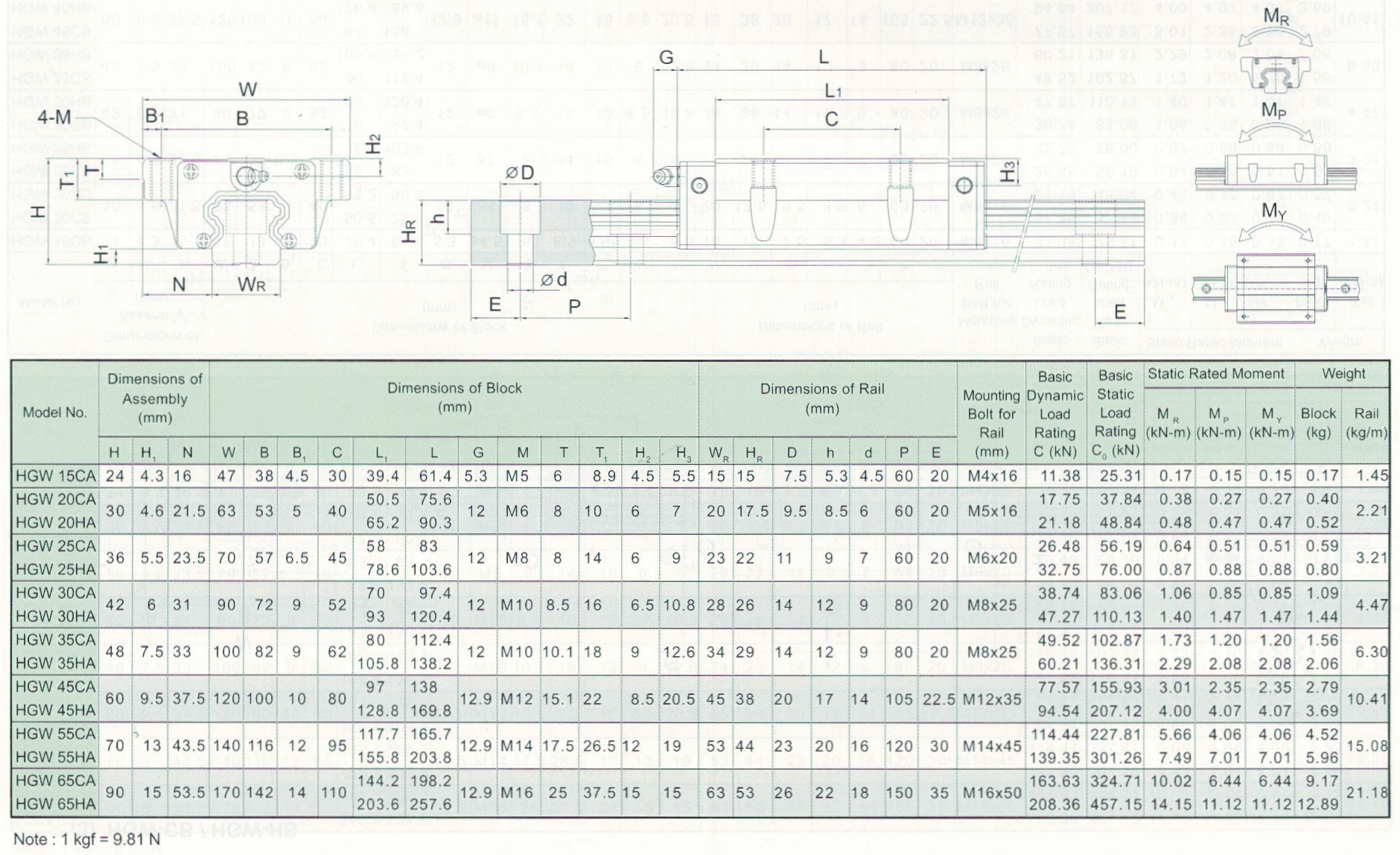

Flange
HGW
24 - 48
100 - 4000
