Multi axis units
High load capacity, speed and precision.

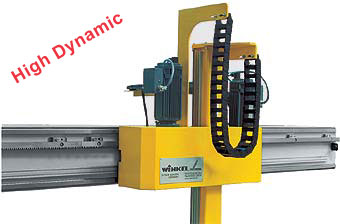

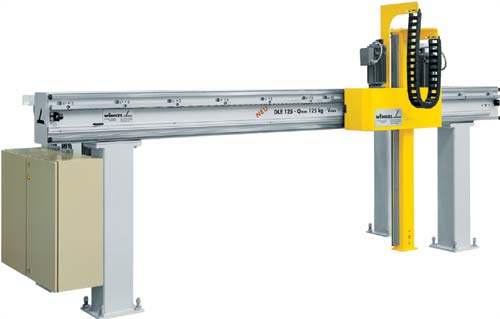

Dynamic linear-unit Type DLE


with rack and pinion drive

Technical characteristics:
Load capacity: 50 kg to 1.0 t
Speed: max. 3 m/sec horizontal
max. 2 m/sec vertical
Repeatability: ± 0.1 mm
Stroke: max. 20 m

Longer axis modules on request.

The advantages:
high load capacity, speed and precision
LM guides,
central lubrication system on request
short delivery times
