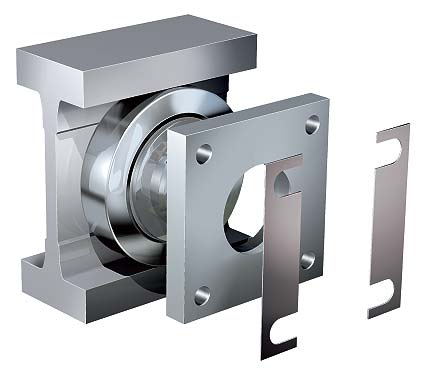

Combined Bearings
Lifting and handling in a economical way.


Jumbo-profiles



Product Information

All profiles are made from high-quality steel UNI FE 510.C.
To our Combined Bearing system, we produce all profiles in fixed lengths, according to customers order.
Low cost version with milled profile only on one side on request.
Maximum production length 12 m.
U-profiles and special designs on request.



Jumbo-profiles



Profiles

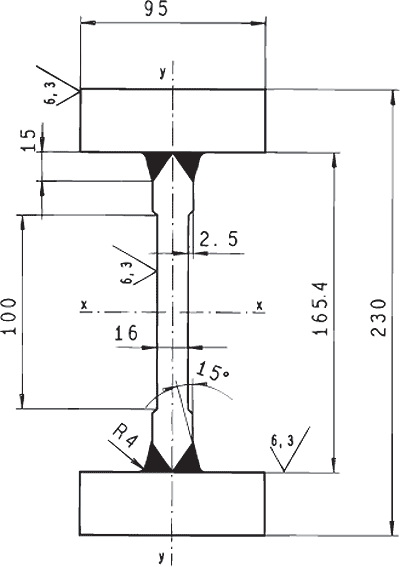

Standard 10
weight/m
71 kg
Tragkraft:
~ 10 t
Wx:
593 cm3
Wy:
100 cm3
lx:
6825 cm4
ly:
475 cm4

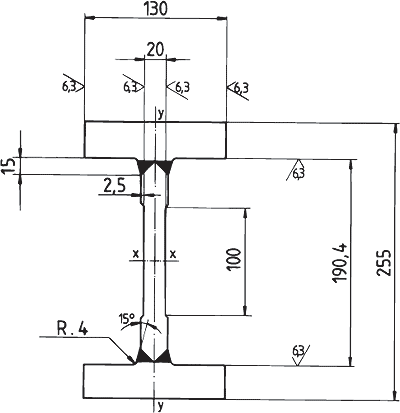

Standard 16
weight/m
100 kg
Tragkraft:
~ 16 t
Wx:
940 cm3
Wy:
185 cm3
lx:
11983 cm4
ly:
1203 cm4

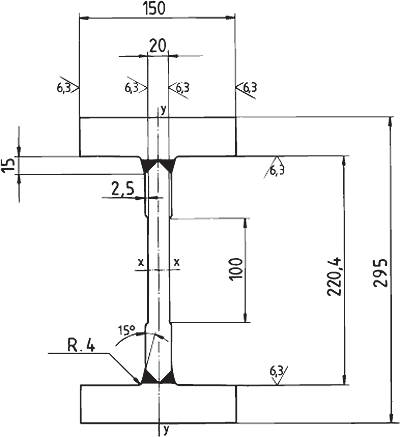

Standard 18
weight/m
175 kg
Tragkraft:
~ 28 t
Wx:
2196 cm3
Wy:
410 cm3
lx:
37883 cm4
ly:
3279 cm4

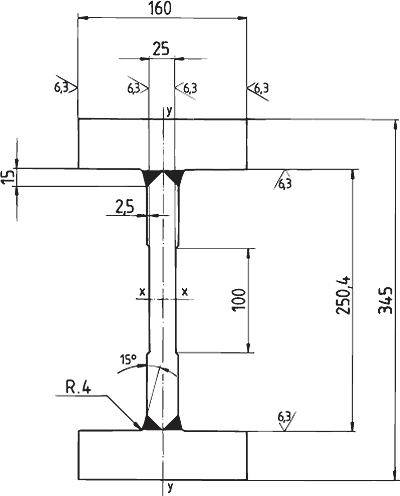

Standard 28
weight/m
175 kg
Tragkraft:
~ 28 t
Wx:
2196 cm3
Wy:
410 cm3
lx:
37883 cm4
ly:
3279 cm4

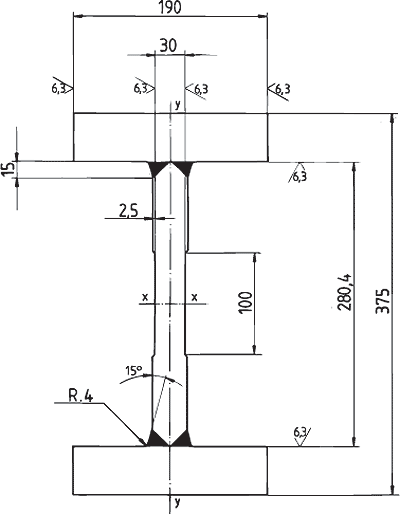

Standard 36
weight/m
215 kg
Tragkraft:
~ 36 t
Wx:
2945 cm3
Wy:
578 cm3
lx:
55210 cm4
ly:
5498 cm4

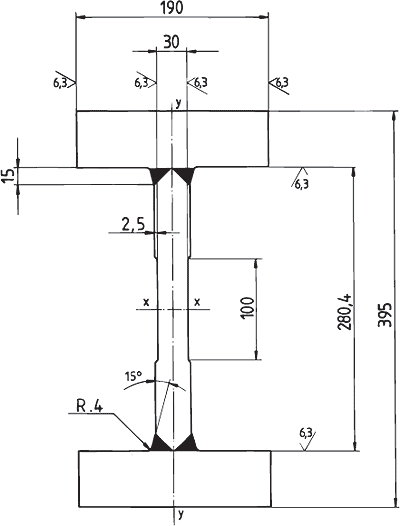

Standard 42
weight/m
245 kg
Tragkraft:
~ 42 t
Wx:
3505 cm3
Wy:
700 cm3
lx:
69230 cm4
ly:
6642 cm4


Dimentionsing

Q = Load capacity (N)
L = Load distance to suspension point (mm)
P = Suspension point
A = Bearing distance (mm) recommended 500-1000 mm

Formula

Fmax [N] = (Q * L) / (2 * A)
stat.radial

To avoid wear out in the profile, which is not hardened, the pressure between bearing and profile should be max.
Pzul = 860 N/mm² for Nb-profiles (St.0-St.6 + PR0-PR6)
Pzul = 750 N/mm² for all profiles except Nb-series.
Here indicated are F maxstat radial + axial for each bearing.

Selection of bearings over the hertzian pressure


Dimensioning /<br>calculation of the reel load
Dimensionierung / Berechnung der Rollenbelastung

Radial Bearing
Combined
Bearing

Axial Bearing
fix
Combined
Bearing

Axial Bearing
adjustable
Combined
Bearing

Axial Bearing
adjustable
Combined
Bearing with
eccentric
bearing
Combined
Bearing with
combined
bolt
FR KN

max. stat.
radial
FA KN

max. stat.
axial
Profiles
-
4.052 P
-
-
-
-
0,80
0,40
A
-
-
-
4.053
-
-
-
-
5,23
1,68
S
-
-
(PR) 2.054
(PR) 4.054
(PR) 4.454
(PR) 4.072
JC 4.054
KB (PR) 4.072
9,40
3,10
0 NB
PR 0 NB
-
(PR) 2.055
(PR) 4.055
(PR) 4.455
(PR) 4.073
JC 4.055
KB (PR) 4.073
11,30 (8,59)
3,73 (2,86)
1 NB
PR 1 NB
(3018)
(PR) 2.056
(PR) 4.056
(PR) 4.456
(PR) 4.074
JC 4.056
KB (PR) 4.074
11,72
3,87
2 NB
PR 2 NB
-
-
4.057
4.057
4.075
-
-
(8,92)
(2,97)
-
-
(3019)
(PR) 2.058
(PR) 4.058
(PR) 4.458
(PR) 4.076
JC 4.058
KB (PR) 4.076
20,47 (15.57)
6,76 (5,19)
3 NB
PR 3 NB
(3020)
-
4.059
4.059
4.077
-
-
(15,47)
(5,15)
-
-
(2912)
-
4.060
4.060
4.078
-
-
(16,49)
(5,49)
-
-
(3100)
(PR) 2.061
(PR) 4.061
(PR) 4.461
(PR) 4.0784
JC 4.061
KB (PR) 4.0784
21,68
7,16
4 NB
PR 4 NB
-
(PR) 2.062
(PR) 4.062
(PR) 4.462
(PR) 4.079
JC 4.062
KB (PR) 4.079
30,92 (23,52)
10,20 (7,84)
5 NB
PR 5 NB
(3353)
(PR) 2.063
(PR) 4.063
(PR) 4.463
-
JC 4.063
-
54,02
17,80
6 NB
PR 6 NB
-
-
-
-
(PR) 4.080
-
KB (PR) 4.080
37,81
17,80
6 NB
PR 6 NB
-
-
-
4.089
-
-
-
41,71
13,91
10
-
-
-
-
4.090
-
-
-
58,00
19,40
16
-
-
-
-
4.091
-
-
-
84,00
28,00
18
-
-
-
-
4.092
-
-
-
101,50
33,90
28
-
-
-
-
4.093
-
-
-
139,40
46,50
36
42
-
