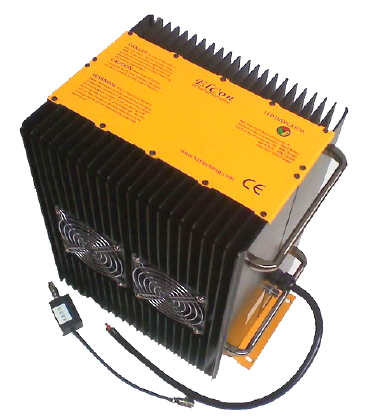

8000W HF/PFC Battery Charger
Advantages
1. Internal integrated PFC, no pollution to electric network,
avoid shocking on electric network from heavy current.
2. Wide input voltage range AC85V~AC265V available for
worldwide requirements, convenient for electric-network
fluctuation and vehicles exportation.
3. High with 93% above efficiency while only about 80%
efficiency the traditional chargers can meet.
4. Intelligent temperature compensation function in the
charging process, preventing the damage to battery caused bycharge-off or charge due, greatly extending the lifespan of thebattery.
5. Fully-sealed and water-proof, protection class IP46. Shock
resistance treatment made inside makes vibration-proof level up to SAEJ1378 that can fully meet the standard of automobile appliance usage.
6. Available for various kinds batteries like lead-acid, LiFePO4 battery etc., Flexible and programmable of the charging mode and preset in 10 unique algorithms. Equipped with CAN communication interface to realize real-time communication with BMS.

Specification

Model Output Voltage-Nominal Output Voltage-Maximun Output Current-Maximun
TCCH-48-140
48V
66V
140A
TCCH-60-120
60V
83V
120A
TCCH-72-100
72V
96V
100A
TCCH-84-84
84V
112V
84A
TCCH-96-72
96V
130V
72A
TCCH-108-64
108V
145V
64A
TCCH-120-60
120V
168V
60A
TCCH-144-48
144V
192V
48A
TCCH-156-44
156V
208V
44A
TCCH-168-40
168V
234V
40A
TCCH-180-36
180V
243V
36A
TCCH-192-36
192V
258V
36A
TCCH-216-32
216V
290V
32A
TCCH-288-24
288V
389V
24A
TCCH-312-22
312V
417V
22A

Technical

AC Input Voltage Range
AC85V~AC265V
AC Input Frequency
45~65 Hz
AC Power Factor
≥0.98
Full Load Efficiency
≥93%
Mechanical Shock &
Vibration Resistance Level
Conformance to
SAEJ1378 Standard
Environmental Enclosure
IP46
Operating Temperature
-40'C~+55'C
Storage Temperature
-40'C~+100'C
Mechanical Dimensions(mm)
354(L)×253(W)×375(H)
Net Weight
27.70kg

LED Indicator

Red-Green flash
(one second interval)

Battery Disconnected

Red flash
(three seconds interval)

Repair Battery

Red flash
(one second interval)

<80% Charge Indicator

Yellow flash
(one second interval)

>80% Charge Indicator

Green flash
(one second interval)

100% Charge Indicator









Protection Features
1. Thermal Self-Protection: When the internal temperature ofthe charger exceeds 75'C, the charging current will reduce automatically. If exceeds 85'C, the charger will shutdown
protectively. When the internal temperature drops, it will resumecharging automatically.
2. Short-circuit Protection: When the charger encounters unexpected short circuit across the output, charging will automatically stop. When fault removes, the charger will re-start in 10 seconds.
3. Reverse Connection Protection: When the battery is polarity reversed, the charger will disconnect the internal circuit and the battery, the charging will stop and avoid been damaged.
4. Input Low-voltage Protection: When the input AC Voltage is lower than 85V, the charger will shutdown protectively and automatically resume working after the voltage is normal again.


Alarms.
  LED Flashing
Sequence( One Cycle )
Indication
1 R G _ _ _ _ _ _ Wrong Battery
2 R G R _ _ _ _ _ Overcharged
3 R G R G _ _ _ _ Battery Overheated
4 R G R G R _ _ _ Incorrect AC Input Voltage
5 R G R G R G _ _ External Thermal Sensor Fault
6 R G R G R G R _ Communication Interface Fault
7 G R _ _ _ _ _ _ Charger Overheated
8 G R G _ _ _ _ _ Charger Relay Fault;Repair
9 G R G R _ _ _ _ Charger Fault; Repair

Note:
1. R—red G—green
2. “_” denotes one second stop
3. Above LED flashing sequence is one cycle, the LED will flash repeatedly when in fault.

Choice of Charging Curve (curve 1~10)
1.The LED will flash red several times when AC is first connected, then the LED will flash green once. The number of red flashes denotes the present curve. E.g. If the red flashes three times, it means the present curve is curve 3.
2.To choose another curve, please cut off the power supply first, then unpeel the label, pressing the button while connecting the power. If you want to choose curve 3, release the button after the 3rd LED Flash. Now the selected curve (e.g. curve 3) will be recorded in memory. If you want the charger to work with the selected curve (e.g. curve 3), cut off the power and reconnect it.
3. Factory customizes 10 charging curves before delivery according to customer demand. These are 10 combinations of voltage and battery size for the same battery type.
